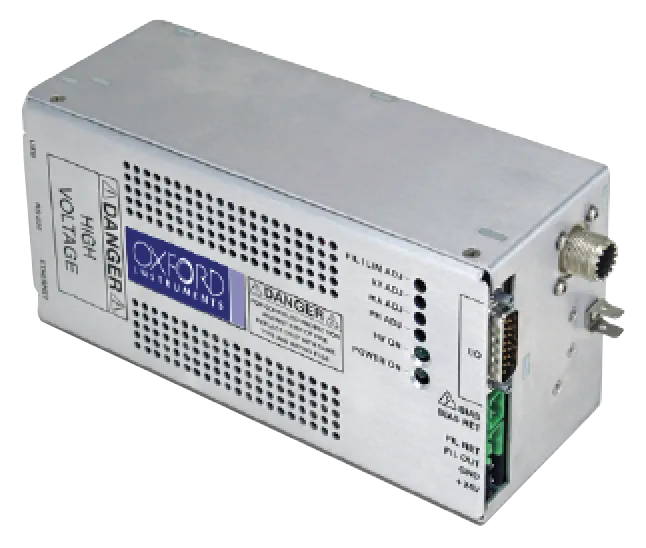

Shasta 2 Series X-ray Tube Power Supply
Brand: Oxford Instruments | Category: Nanotechnology
The Shasta 2 Series is a robust supply optimised to power grounded filament X-ray tubes from Oxford Instruments, and its versatility lets it drive virtually any grounded filament tube. Closed loop emission control circuitry with low ripple delivers a highly regulated beam current and high stability, and both local and remote analogue control are provided for setting voltage and emission current. Models with grid focus control are matched to the Apogee tubes.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range | 10-50kV |
| Maximum Power | 50W |
| Maximum beam current | 2.0mA |
| DC Filament Supply | Current: 3.5A adjustable limit Voltage: 5.0 VDC volt limit |
| Efficiency | 75%, typical |
| Voltage and Current Monitors: | 0 to +10 VDC proportional from 0 to rated output. Accuracy ±1% |
| Voltage Program Inputs: | 0 to +10 VDC proportional from 0 to rated output. Accuracy ±1% |
| Stability | ± 0.05% over an 8-hour period after 30-minutes warm-up |
| Input Voltage & Power | +24VDC @ 5.0A, max |
| Voltage Control | Local: via multi-turn potentiometer (kV ADJ); Remote: via external voltage source 0 to 10V (accuracy ± 1%) |
| Emission Control: | Local: Internal potentiometer to set beam curent between 0 and full output current. Remote: 0 to +10Vdc proportional from 0 to full output current. Accuracy: ±1% |
| Protection | Over voltage, over current protection. Arc |
| Environment: | Operational: 0 to 50˚C Storage: -40 to + 85˚C Humidity: 0% to 90%, non-condensing |
| Temperature Coefficient | 0.01 % per ˚C, voltage and current |
| Weight | 2.1 kg (4.5 lbs.) typical |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
