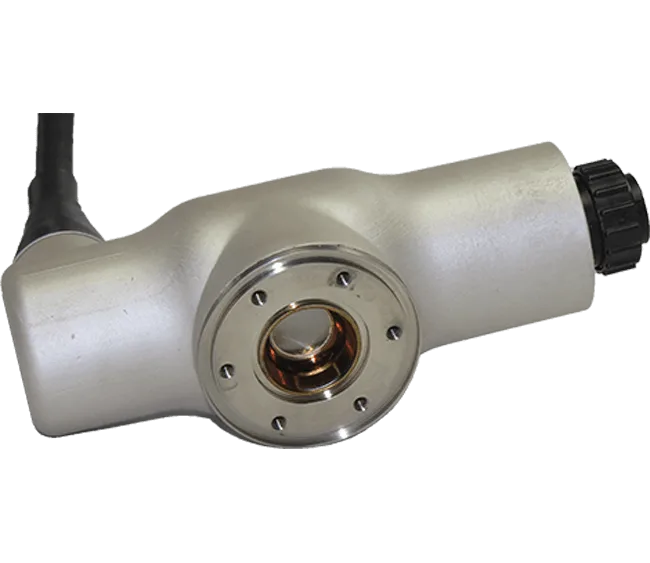

Pinnacles 50kV Microfocus X-ray Source
Brand: Oxford Instruments | Category: Nanotechnology
Developed for applications needing high resolution across a wide angle field of view, the Pinnacles 50kV microfocus source offers high flux output from a compact body. The package is fully radiation shielded and insulated, with an integrated high voltage cable on the side of the tube to simplify connection. The Shasta uF power supply has been optimised to drive this tube.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range | 10-50kV |
| Maximum Power | 12W |
| Maximum beam current | 1.0mA |
| Focal spot size | 10 µm (50kV, 12W) line pair resolution using JIMA RT RC-02 (4) (see datasheet page 2, Notes #4) |
| Focus to Object Distance (FOD) | 35.18mm (1.385”) |
| Target material | W |
| Target angle | 45° |
| Cone of illumination (unobstructed) | 40.5° ± 0.5° |
| Window material and thickness | Be, 254µm |
| Window diameter (unobstructed) | 16.88mm (.66") |
| Maximum operating temperature | 50°C at potting surface |
| Ambient operating temperature | 0°C to 40°C; 0-95% RH up to 5,000ft |
| Cooling method | Forced air @ 150cfm at 100mm (4.0”) recommended |
| Shielding | Fully shielded. X-ray leakage < 1.0µSv.hr-1 at 10cm |
| Weight | ≈1.37kg (3 lbs) |
| Storage conditions | -10°C to 55°C; Barometric Pressure: 50-106kPa; Humidity: 10-90% (no condensation); Condensation on Be window will cause window corrosion, vacuum loss and X-ray tube failure. |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
