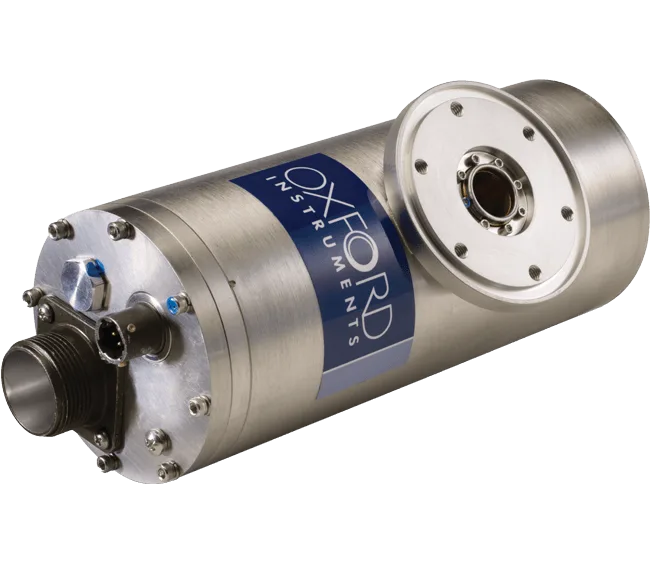

Jupiter 5000 Series Radiation Shielded X-ray Tube
Brand: Oxford Instruments | Category: Nanotechnology
This packaged tube is rated 50kV and 50W and is built for continuous running at high flux density. Highly stable, high intensity tube technology puts it to work in medical imaging and in most high resolution industrial inspection and non-destructive testing, covering PCB assembly, battery, plastic, metal and mechanical parts. Dielectric oil inside a stainless steel, lead lined package handles shielding and heat dissipation, while integral high voltage and filament connectors make the unit plug and play. A wide range of spot sizes and target materials is offered.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range | 50kV max. Lower kV cutoff varies by product. See product ordering table. |
| Maximum Power | 50W (except 93035) |
| Maximum beam current | 1.0mA (except 93512) |
| Focal spot size | See Product Quote table below. |
| Maximum Filament Current | See Product Quote table below. |
| Filament Voltage | 2.0V (nominal) |
| Focus to Object Distance (FOD) | See diagram on Datasheet. |
| Window material and thickness | Be @ 127µm |
| Cone of illumination (unobstructed) | 23° |
| Window diameter (unobstructed) | 11.43mm (.450") |
| Target material | See Product Quote table below. |
| Target angle | 12° |
| Stability | 0.2% 4 hours |
| Polarity | Grounded cathode |
| Ambient operating temperature | 0°C to 40°C |
| Shielding | 0.25mR/hr @ 2” (except at HV connection) |
| Dimensions | 180mm L x Ø70mm (7.09” L x Ø2.76”) |
| Weight | 2.26 kg (5.0 lbs) |
