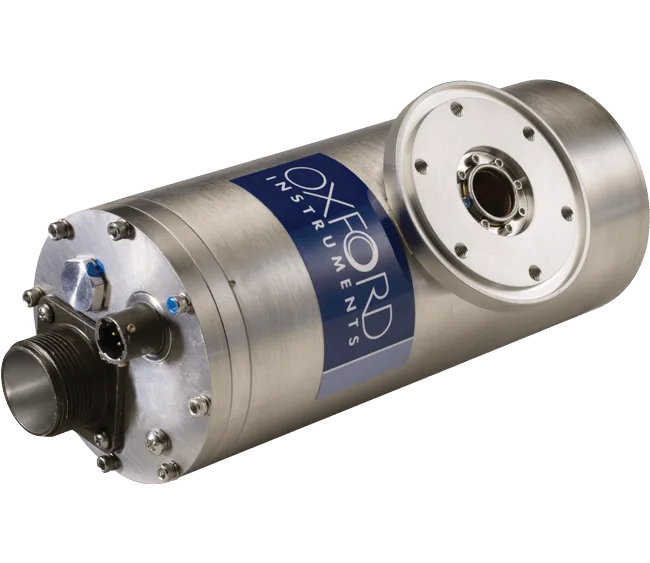

Apogee 5500 Series Radiation Shielded X-ray Tube
Brand: Oxford Instruments | Category: Nanotechnology
Rated at 50kV and 50W, this packaged assembly targets duty where flux density stays high and the source runs continuously. Grid controlled variable focus layered on the high stability, high intensity tube technology yields very small focal spots, which serves high resolution industrial inspection and non-destructive testing across PCB assembly, battery, plastic, metal and mechanical parts, and also works well behind X-ray optics. Housing is a compact stainless steel, lead lined enclosure filled with dielectric oil for maximum shielding and heat dissipation, fitted with high voltage and filament connectors so the unit runs plug and play.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range | 10-50kV (except 9300005) |
| Maximum Power | 50W (except 93504) |
| Maximum beam current | 1.0mA |
| Grid Voltage | 0-100V (Oxford Shasta Power Supply recommended) |
| Maximum Filament Current | 1.7A |
| Filament Voltage | 2.0V (Nominal) |
| Target Material | See Product Quote table below. |
| Cone of Illumination | 22° |
| Spot to Window Spacing (FOD) | 31.05mm ±1mm |
| Window material and thickness | Be @ 127µm |
| Flux & Current Stability | ≤ 0.2% over 4-hour period |
| Ambient Temperature Conditions | Operating: 0 to 40°C; Storage: -10°C to 50°C |
| Humidity | 0-95% RH up to 5,000 feet |
| Shielding | 0.25mR/hr @ 2" (except HV connection through HV cable) |
| Dimensions | 180mm L x Ø70mm (7.09” L x Ø2.76”) |
| Weight | 2.26 kg (5.0 lbs) |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
