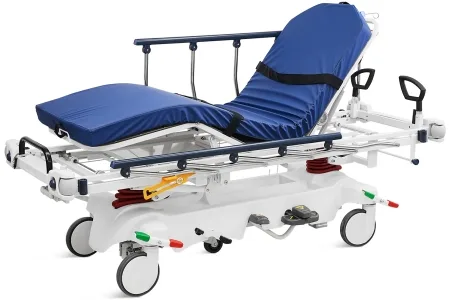

SKB041-6 Patient Transportation Trolley (Backrest X-ray) (SKM-F)
Brand: Saikang Medical | Category: Medical Equipment
An X-ray holder is mounted on the back of this SKM-F backrest X-ray model. Four built-in bumper wheels of 75mm±1mm diameter are removable and durable. A PP base cover underneath takes items and an oxygen cylinder. Saikang publishes an identical set of highlights for the SKB041-7 SKV-BE trolley, so the two differ by model reference alone.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size(LxW) | 2200×770mm(±10 mm) |
| Table height adjustment | 550-860mm(±10mm) |
| Back plate adjustment | 0-85°(±5°) |
| Knee-rest adjustment | 0-50°(±5°) |
| Reverse Trendelenburg | 0-15°(±2°) |
| Trendelenburg | 0-15°(±2°) |
| Static Load Capacity | 250 kg |
| Dynamic Load Capacity | 135kg |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
