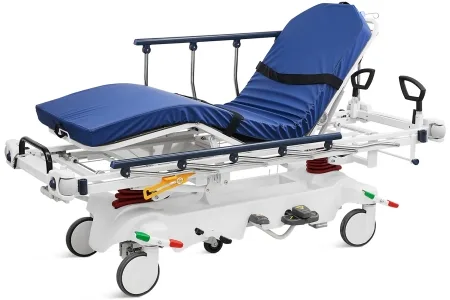

SKB041-7 Patient Transportation Trolley (SKV-BE)
Brand: Saikang Medical | Category: Medical Equipment
Published details for the SKV-BE match those of the SKM-F backrest X-ray model exactly, so the choice between them comes down to the model reference. An X-ray holder sits on the back, four built-in bumper wheels of 75mm±1mm diameter are removable and durable, and a PP base cover below can hold items and an oxygen cylinder.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size(LxW) | 2200×770mm(±10 mm) |
| Table height adjustment | 600-910mm(±10mm) |
| Back plate adjustment | 0-85°(±5°) |
| Knee-rest adjustment | 0-50°(±5°) |
| Reverse Trendelenburg | 0-15°(±2°) |
| Trendelenburg | 0-15°(±2°) |
| Static Load Capacity | 250 kg |
| Dynamic Load Capacity | 135kg |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Use, load requirement and overall dimensions against the room or transfer route
- Castors/brakes, surfaces, storage and required attachments
- Cleaning compatibility, assembly, power/battery needs where applicable and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
