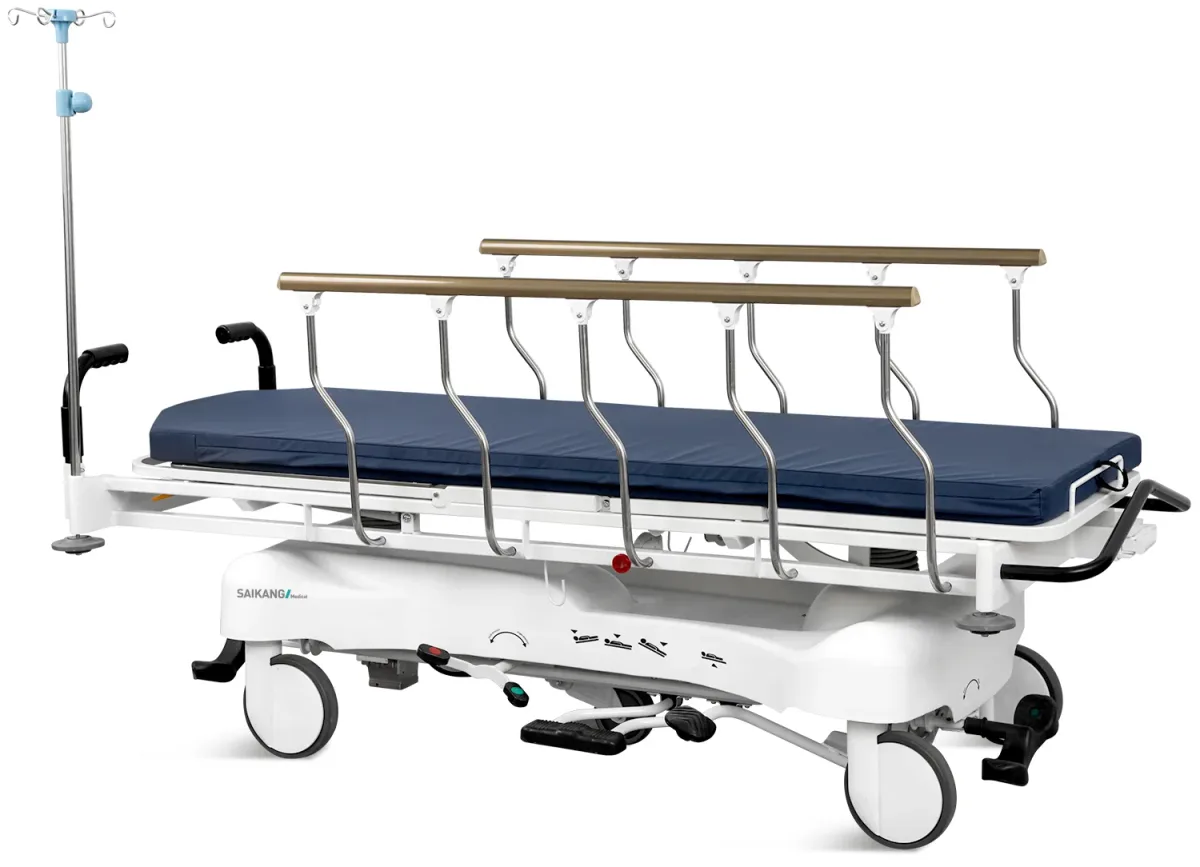

SKK-B Patient Transportation Trolley
Brand: Saikang Medical | Category: Medical Equipment
Measuring 2120 mm long by 840 mm wide with the bed surface 590-900 mm ±10 mm from the floor, this trolley uses an HPL back bed board that allows half-body X-ray imaging and carries a back X-ray clamp, while the other boards are plastic-steel. Two hydraulic pumps and foot pedals on both sides of the bed frame handle lifting, forward tilt and backward tilt, giving 0-85° ±5° back lift, 0-30° ±5° leg lift and 0-15° ±2° in both Trendelenburg directions. Four 8-inch central control casters with central brakes front and rear are fitted, plus a fifth caster for directional movement and four anti-collision wheels. Static load capacity is 250 kg and dynamic load capacity 135 kg, with a 10 cm PU fabric mattress, patient straps and an oxygen bottle holder supplied.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Dimensions | Length 2120 × Width 840 × Height 590-900 mm ±10 mm (This height refers to the distance from the ground to the bed surface) |
| Back Lifting Range | 0-85° ±5° |
| Leg Lifting Range | 0-30° ±5° |
| Reverse Trendelenburg | 0-15° ±2° |
| Trendelenburg | 0-15° ±2° |
| 5-speed Foldable Guardrails | 1 pair |
| Static Load Capacity | 250 kg |
| Dynamic Load Capacity | 135 kg |
| With patient straps | 2pcs |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Use, load requirement and overall dimensions against the room or transfer route
- Castors/brakes, surfaces, storage and required attachments
- Cleaning compatibility, assembly, power/battery needs where applicable and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
