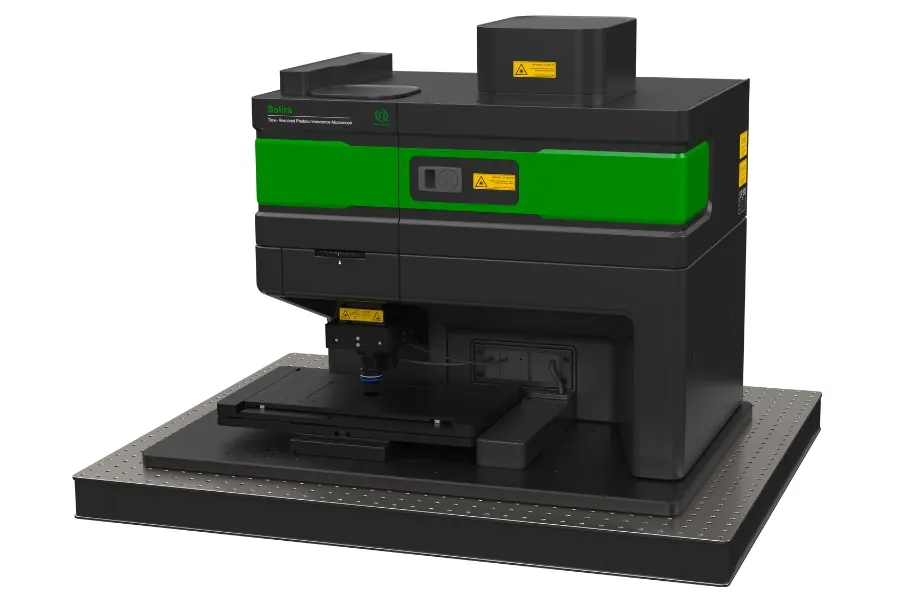

Solira
Brand: PicoQuant | Category: Nanotechnology
Solira is an all-in-one time-resolved photoluminescence microscope for optical characterisation of materials and optoelectronic devices. It combines flexible excitation, sensitive detection of weak signals and picosecond timing to follow fast dynamics across different material systems.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Picosecond diode-laser choices | 355–1064 nm |
| Repetition rate | Single shot to 40 MHz; 80/100 MHz options depend on laser |
| 3D piezo objective-scanner range | 80 × 80 × 100 µm |
| Wide-range scanner option | 128 × 86 mm |
| Carrier-diffusion scanner option | 22 × 22 mm |
| Recommended room temperature | 15–25°C; temperature stability ±1.5°C |
| Recommended humidity | Below 60% |
| Operating voltage | 220/240 or 110/120 VAC, 50/60 Hz |
Selected Solira datasheet values, page 3. The scanner ranges describe separate options. Confirm the selected scanner, optical configuration and associated performance conditions; no single detector or timing rating applies to every system. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about PicoQuant equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
