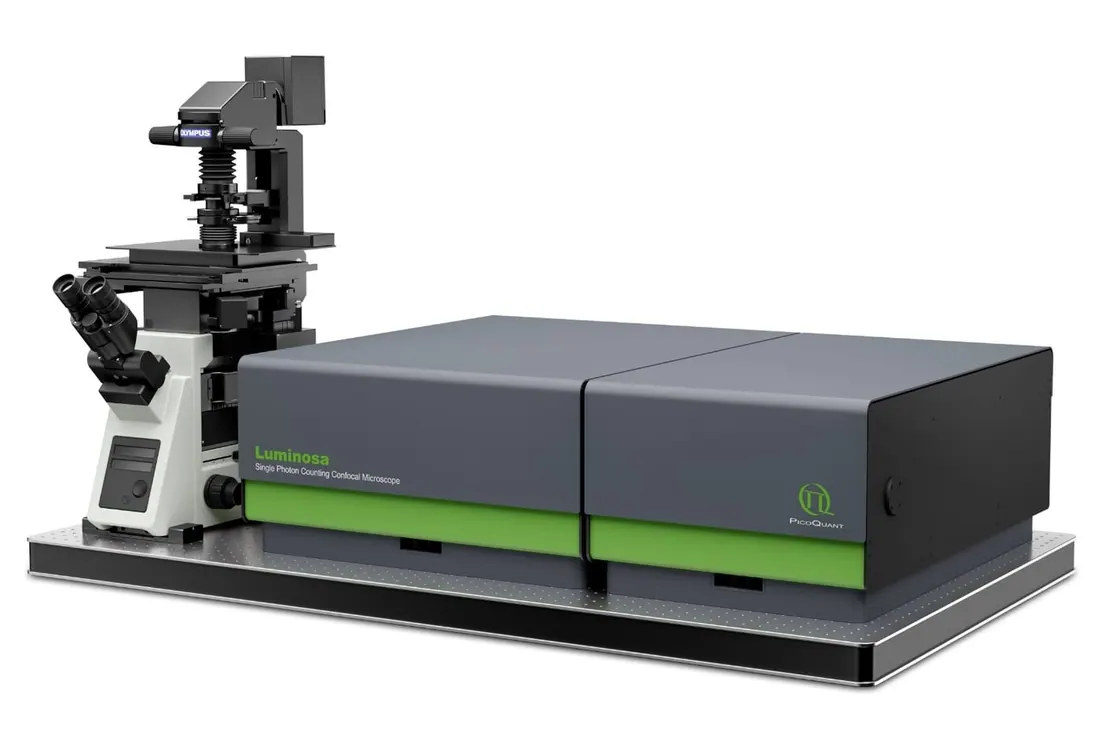

Luminosa
Brand: PicoQuant | Category: Nanotechnology
Luminosa is a confocal fluorescence microscope with single photon counting detection for quantitative, time-resolved and single-molecule imaging. It can be equipped with PDA-23 SPAD array detection for confocal time-resolved measurements. Reported uses include metabolic FLIM studies.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Excitation configuration | 1–8 lasers selected from 375–1064 nm |
| Laser repetition rate | 1–40 MHz; up to 80 MHz at specific wavelengths |
| Laser driver | Eight-channel Sepia PDL 828 L |
| Microscope body | Partly motorized inverted Evident IX73 |
| Dichroic wheel | Six positions for 18 × 25 × 3 mm dichroics |
| Point-detection configuration | Up to six point detectors |
| Array-detection option | PDA-23, 23-pixel SPAD array |
PicoQuant Luminosa datasheet, January 2026, pages 2–3. Wavelength coverage, detection response and imaging speed depend on the chosen laser, detector, optics and scanner. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about PicoQuant equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
