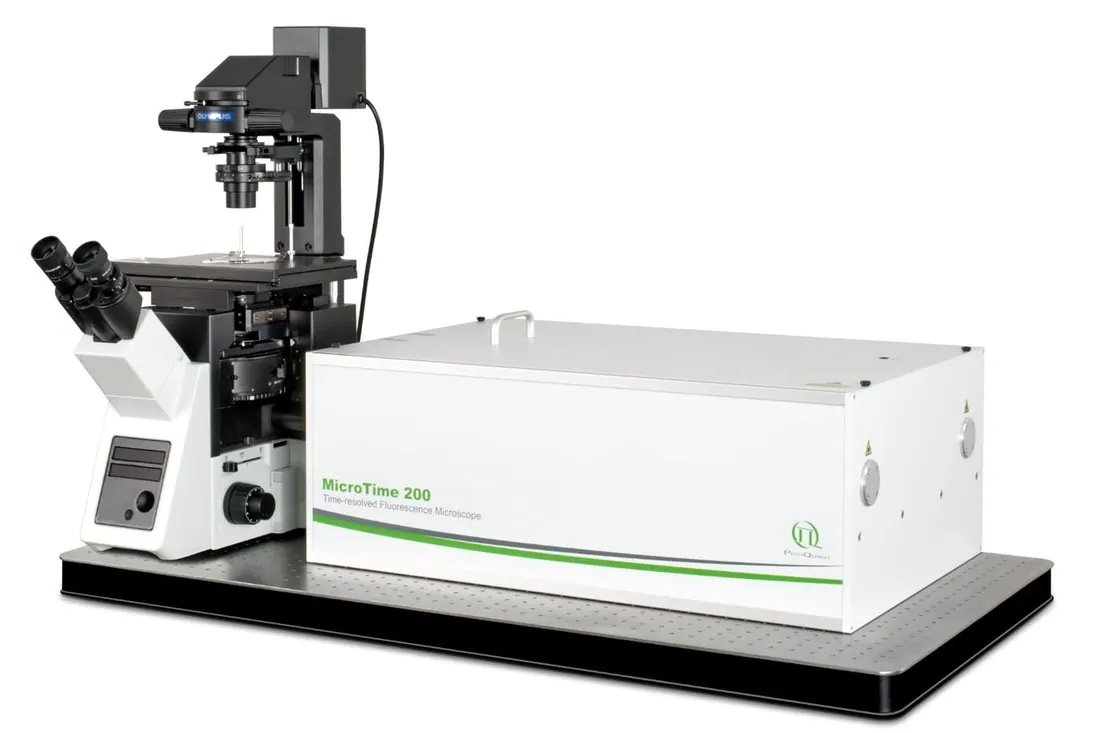

MicroTime 200
Brand: PicoQuant | Category: Nanotechnology
The MicroTime 200 is a modular time-resolved confocal microscope with single molecule sensitivity. It measures time-resolved fluorescence and photoluminescence at the single-molecule level and can be extended for STED super-resolution imaging. It is used in structural biology, semiconductor and nanomaterials research.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Excitation configuration | 1–8 lasers selected from 375–980 nm |
| Laser repetition rate | 1–40 MHz; up to 80 MHz at specific wavelengths |
| Laser driver | Eight-channel Sepia PDL 828 L |
| Microscope body | Inverted Olympus IX73 |
| 60× objective option | Water immersion, NA 1.2, 400–900 nm |
| 100× objective option | Oil immersion, NA 1.4, 400–850 nm |
| Detection options | SPAD or PMA Hybrid-40; spectral and timing performance depend on detector |
Selected values from the linked MicroTime 200 datasheet, page 2. Objectives, lasers, scanning and detectors are configuration choices, not equipment included in every quotation. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about PicoQuant equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
