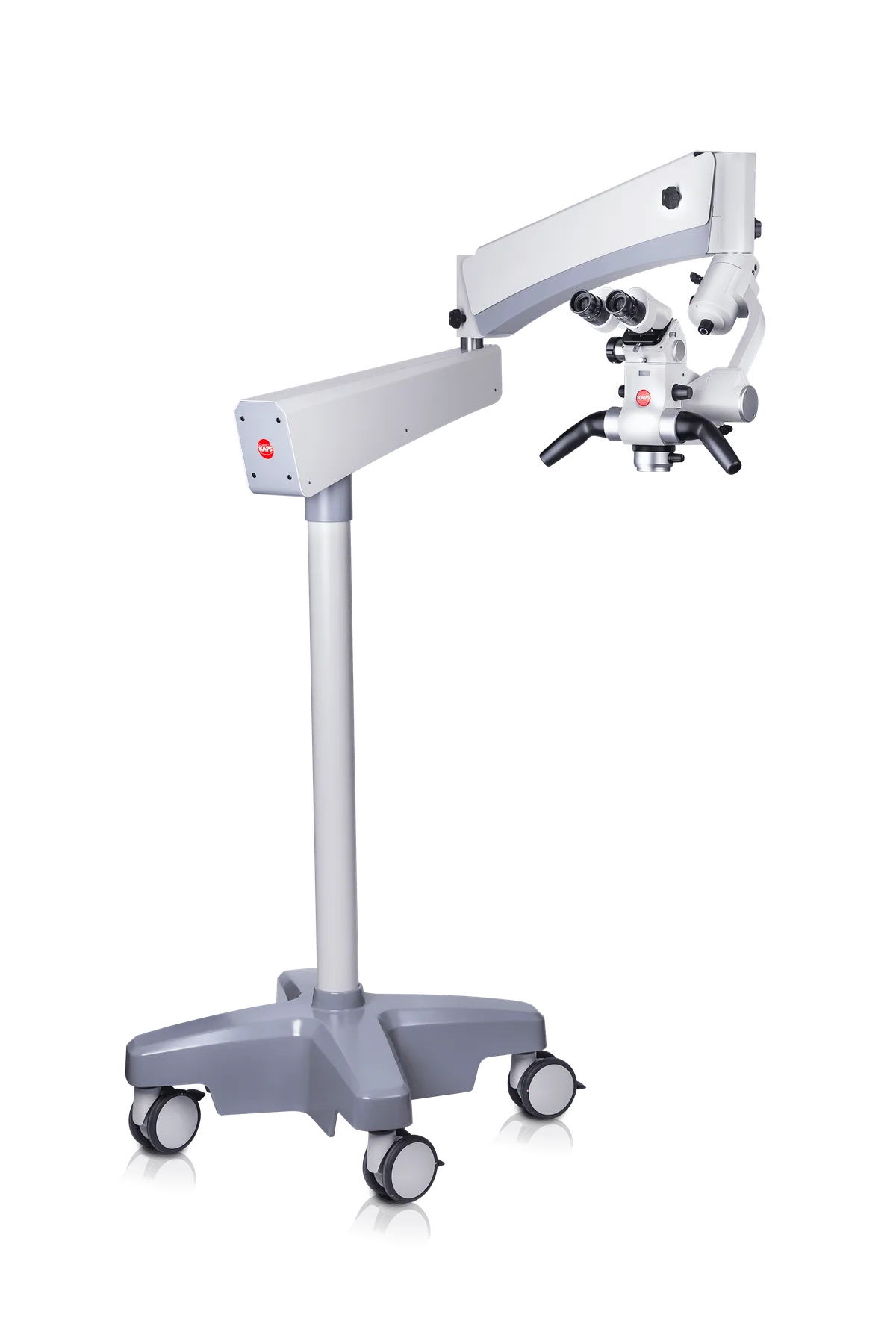

SOM4Dent 300
Brand: Karl Kaps | Category: Medical Equipment
Kaps calls the SOM4dent 300 the flagship of its endodontic microscopes, developed for dentists who work under magnification every day. Motorised 1:7 zoom with adaptive speed, a varioscope covering a working distance of 200 to 350 mm and electromagnetic brakes are all commanded from control buttons built into the comfort handles, so the hands stay on the treatment field. A double iris diaphragm improves depth of field for deep cavities and branching canal systems, while the swing-in orange filter prevents composite fillings curing early. Cabling runs inside the system and the fanless LED works without noise or dust disturbance.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Magnification | Motorised 1:7 zoom |
| Varioscope working distance | 200–350 mm |
| Binocular tube | 0–210° swivel |
| Positioning | Electromagnetic brakes |
Selected details from the named Karl Kaps product page. Optical performance and compatibility depend on the chosen objectives, eyepieces, illumination and mounting. Optional equipment is not included unless specified in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Specimen or clinical application and required imaging/measurement outputs
- Optics/source, detectors, working distance, stage and documentation options
- Room conditions, utilities, preparation accessories and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Karl Kaps equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Medical Microscopes & Colposcopes
- SOM® 62 Ophthal Basic
A compact surgical microscope for general eye surgery, the Ophthal Basic is built for practices and smaller clinics that want dependable optics without additional complexity. The five-position apochromatically corrected magnification changer switches between overview and detail without sacrificing stereoscopic vision. Coaxial cold light fibre optic illumination rated 15V/150W produces the bright red reflex that reveals every layer of the retina, and a ready-to-use spare lamp is built in. Patient safety is covered by the swing-in GG 475 retina protection filter with permanently installed IR and UV filters, and the motorised 40 mm fine focus is driven from a foot switch.
- SOM® 62 1400
Kaps describes the SOM 62 1400 as the top model of its dental microscopes, gathering every comfort feature the range offers into one system. Motorised zoom, focus, XY shift and light regulation are all driven from a multi-function foot control panel, so the operator's hands never have to leave the treatment field, and the Free Motion magnetic brake can also be released by foot. Programmable position memory stores preferred configurations and a centre function returns the optics to the middle position automatically. Kaps aims the model at specialised endodontic practices and at surgeries where several practitioners share one instrument.
- SOM® 62 Ophthal Basic+
What separates the Basic+ from the Basic is agility. A motorised XY coupling with a 50 x 50 mm range of movement lets the microscope head be repositioned from the foot control panel, so the surgeon's hands stay clear of the operating field during phacoemulsification, aspiration of lens fragments and IOL implantation. The same 5x apochromatic magnification changer and coaxial cold light fibre optic illumination with the GG 475 retina protection filter carry over from the Basic, along with built-in IR and UV filters. Kaps treats the model as an open platform: the binocular wide-angle swing tube 0-210° can be retrofitted, and assistant tubes and documentation accessories can be added as requirements grow.
