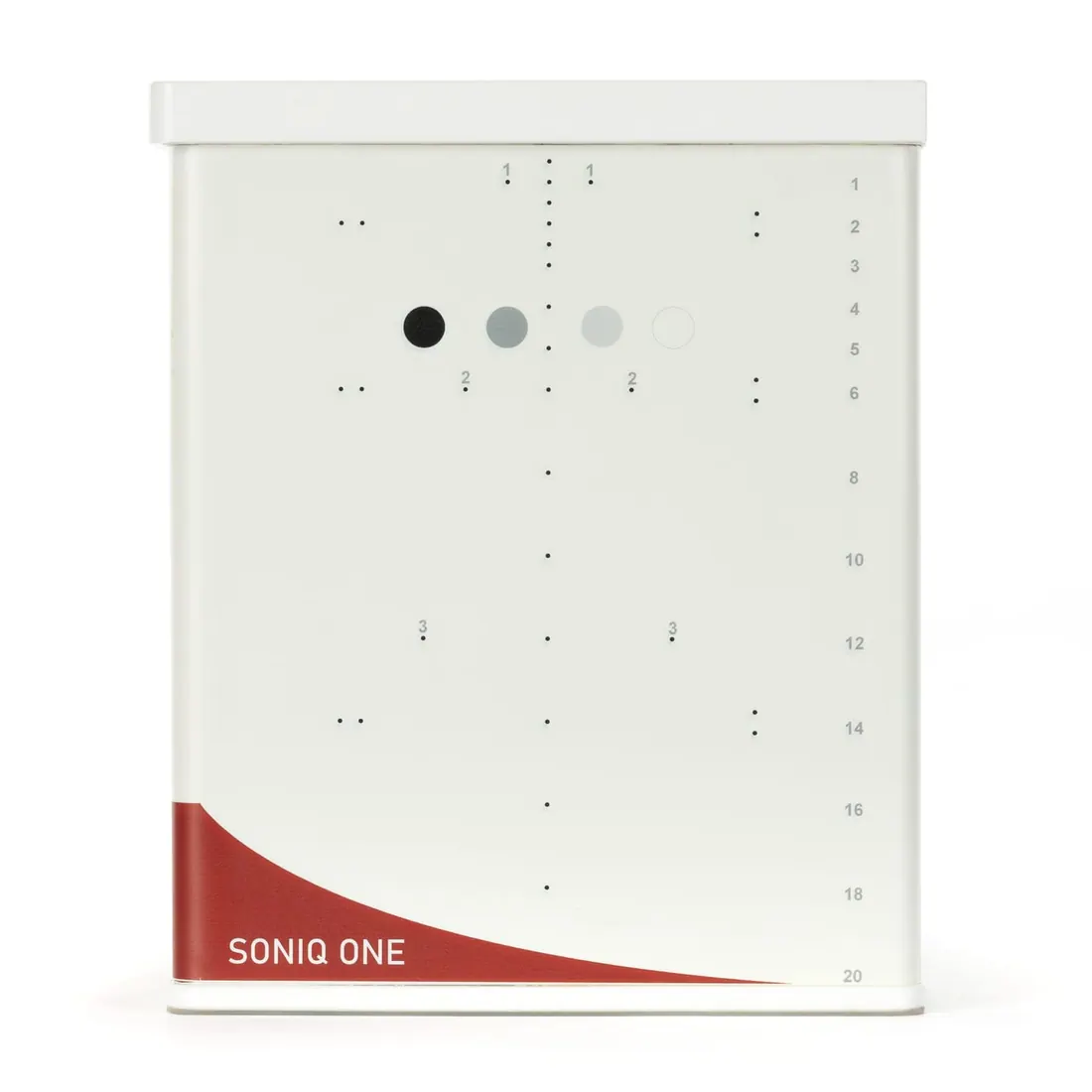

SONIQ ONE
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A tissue mimicking phantom for ultrasound image quality control, carrying grey scale targets, lateral and longitudinal resolution groups and fine pin targets at several depths. It is compact enough to carry between rooms for routine testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Grey scale targets at 45 mm depth | -12, -6, +6 and +12 dB |
| Specification | Spatial resolution, lateral and longitudinal, at 20, 60 and 140 mm depth |
| Specification | Pin targets 0.1 mm diameter, 5, 10 and 20 mm vertical spacing and 10, 20 and 30 mm horizontal spacing |
| Specification | Speed of sound 1540 plus or minus 1% |
| Specification | Attenuation 0.5 dB/cm/MHz, frequency range 1 to 20 MHz |
| Specification | Size 22 x 18.5 x 8.5 cm, weight 3.4 kg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
