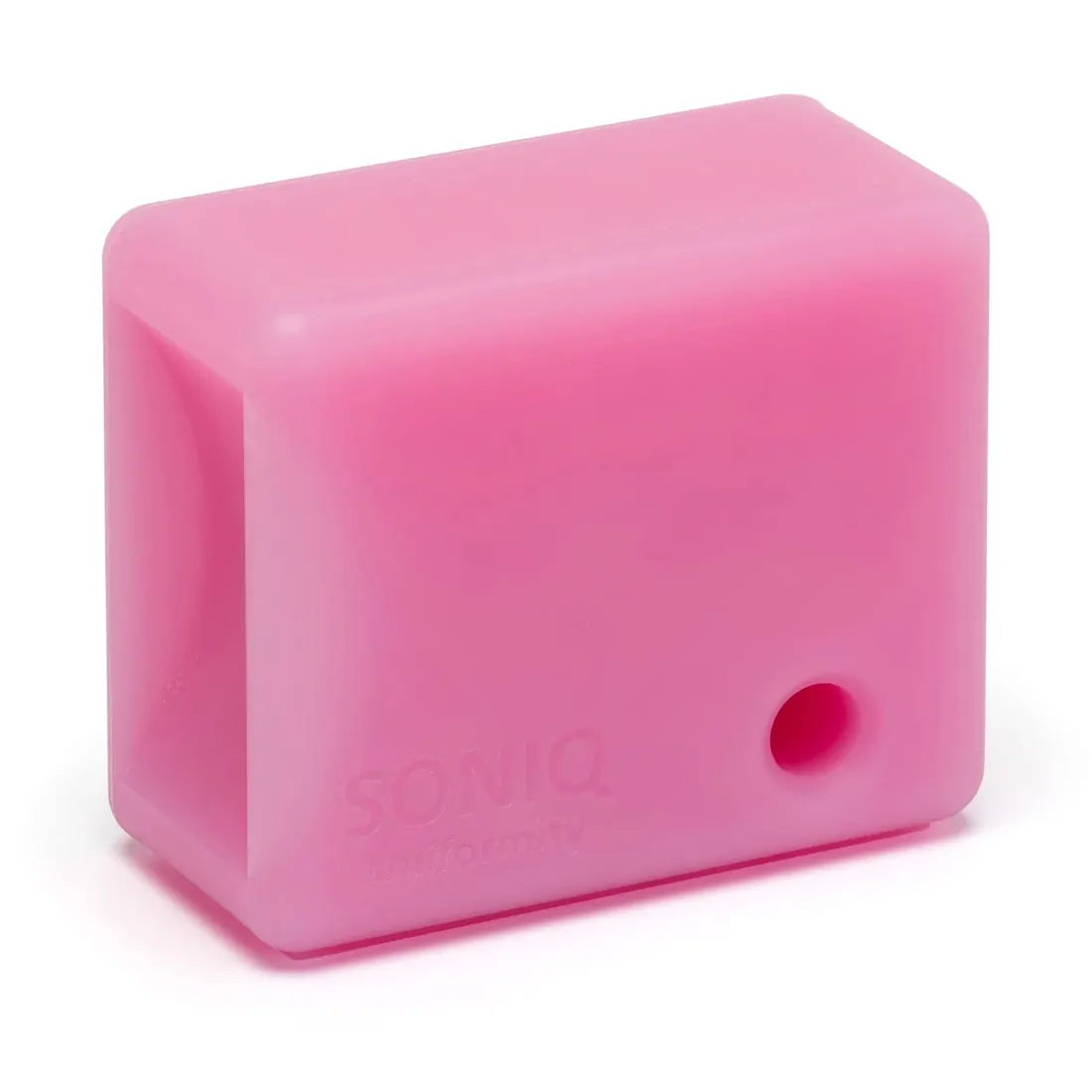

SonIQ Uniformity
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A uniform ultrasound phantom used to test linear, curvilinear and intra-cavity probes for common defects such as damaged transducer elements or cables. Such defects show up as non-uniformities in the image of a uniform phantom.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Size 120 x 100 x 60 mm |
| Specification | Bore size 15 mm diameter, with filling rods |
| Specification | Speed of sound approximately 1000 plus or minus 50 m/s |
| Specification | Attenuation 1 plus or minus 0.1 dB/cm/MHz |
| Accessories | background rod and anechoic rod |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
