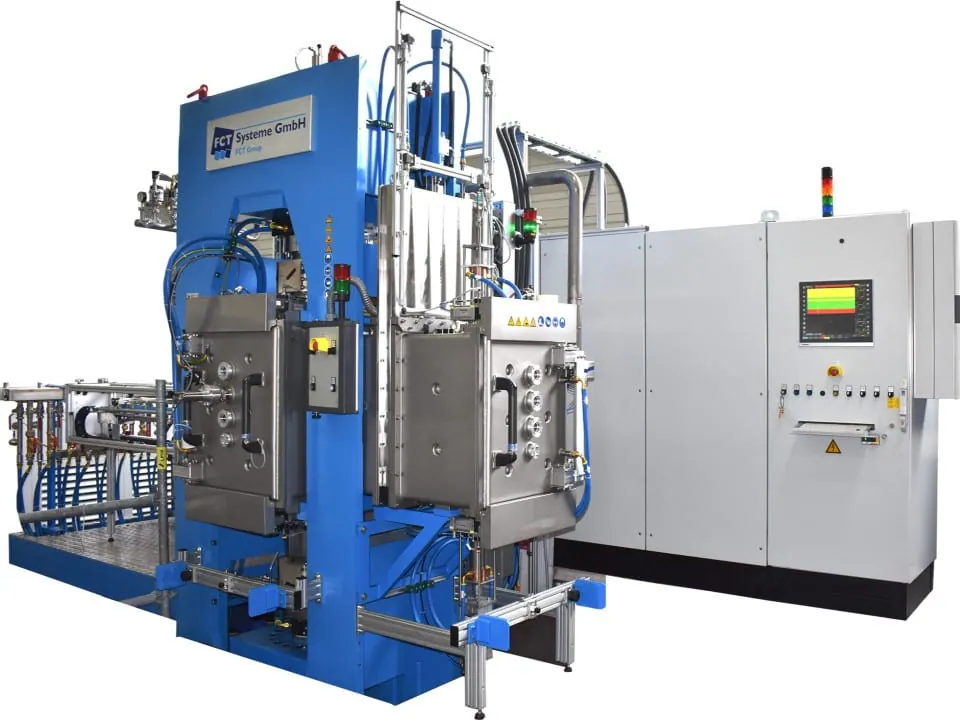

Spark Plasma Sintering Furnace Type HP D
Brand: FCT Systeme | Category: Nanotechnology
A directly heated spark plasma sintering system for the field assisted sintering technique. Pulsed direct current passes through the tool and the component, so cycle times fall to a few minutes and nanomaterials, graded materials and hardmetals can be densified at lower temperatures.
Technical Specifications
| Parameter | Value |
|---|---|
| Working temperature | up to 2200 deg C, optional 2500 deg C |
| Specification | Models HP D 10 to HP D 250, component diameter 50 mm to 300 mm |
| Maximum pressing force | 100 kN to 2500 kN |
| Maximum pulsed current | 5500 A to 48000 A |
| Maximum heating power | 37 kW to 360 kW |
| Specification | Vacuum 5x10-2 mbar, atmospheres Ar, N2, He, H2 (3%), heating rates up to 1000 K/min |
