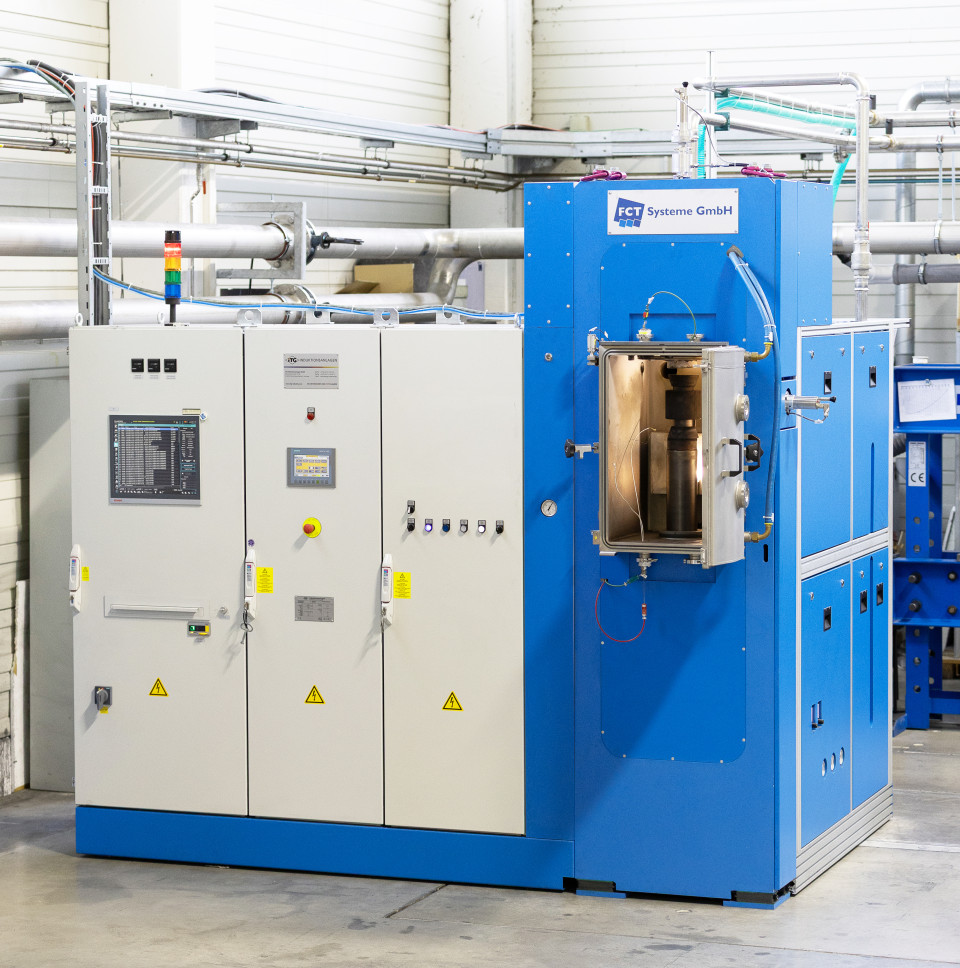

Spark Plasma Sintering Furnace Type HHP D hybrid
Brand: FCT Systeme | Category: Nanotechnology
A hybrid heated FAST/SPS system that combines direct pulsed current heating with one or more external heating systems acting on the press tool. The added external heat balances thermal gradients in large parts and in materials with poor thermal conductivity.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating temperature | up to 2200 deg C |
| Specification | Models H-HP D 10 to H-HP D 400, component diameter 40 mm to 400 mm |
| Maximum pressing force | 100 kN to 4000 kN |
| Maximum hybrid heating power | 60 kW to 700 kW |
| Vacuum | 5x10-2 mbar(a) |
| Specification | Heating rates up to 1000 K/min, up to 100 programmable segments per recipe |
