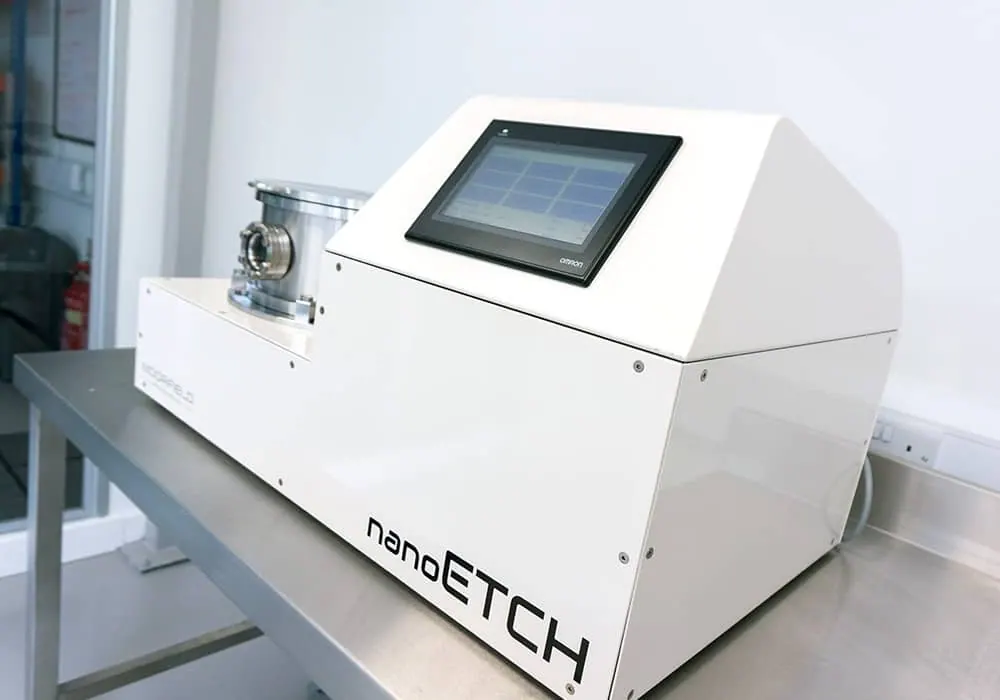

nanoETCH
Brand: Moorfield Nanotechnology | Category: Nanotechnology
A compact plasma etching and surface modification system for low damage process development. It is used on 2D materials, graphene, silicon and oxide layers, and for substrate cleaning and surface activation before deposition.
Technical Specifications
| Parameter | Value |
|---|---|
| System type | precision plasma etching system |
| Process type | plasma etching and surface modification |
| Applications | graphene, nanomaterials, semiconductor research and surface engineering |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Moorfield Nanotechnology equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
