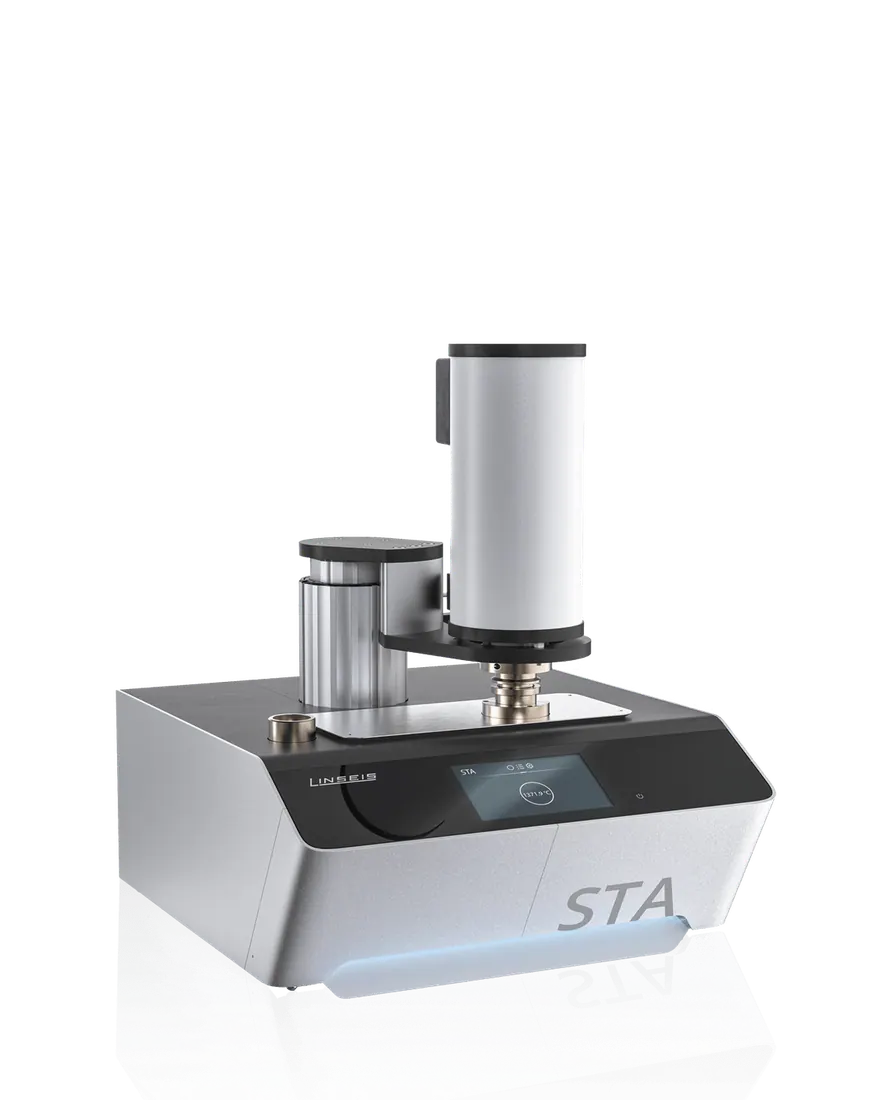

STA L81
Brand: Linseis | Category: Nanotechnology
The STA L81 is a simultaneous thermal analyser that measures mass change and heat flow on one sample in a single run. Interchangeable furnaces cover cryogenic to high temperature work under vacuum or optional pressurised atmospheres. It is used for material characterisation of ceramics, metals and polymers.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -150 C to 2400 C depending on furnace type |
| Heating rates | 0.01 to 100 K/min (on request also from 0.001 K/min) |
| Balance resolution | 0.01 / 0.02 / 0.1 ug |
| Vacuum | up to 10-5 mbar (depending on the pump) |
| Pressure | up to 5 bar overpressure (optional) |
| Atmospheres | inert, oxidising, reducing, vacuum |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
