STA/TGA L86
Brand: Linseis | Category: Nanotechnology

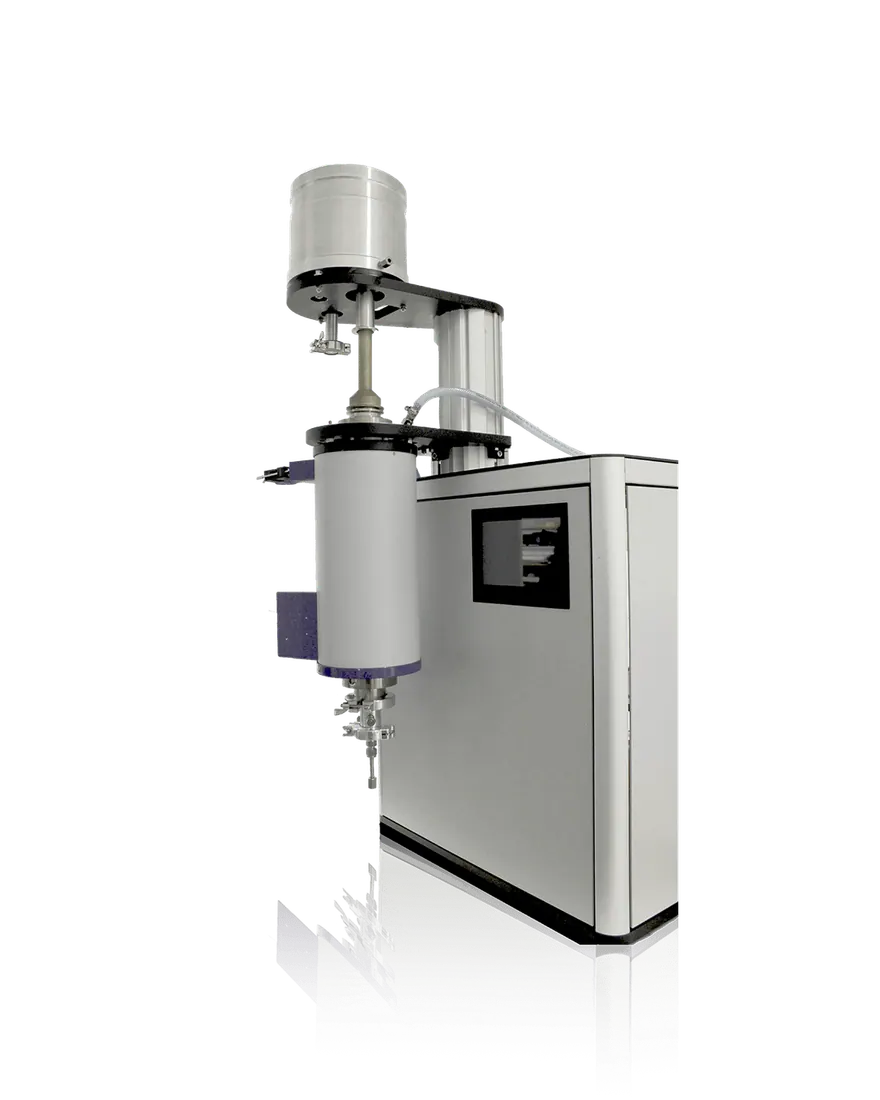

The STA/TGA L86 is an adaptable simultaneous thermal analysis system that measures mass change and heat flow in one run. Two thermobalance versions and a wide choice of furnaces cover cryogenic through to high temperature testing. It is used for routine laboratory analysis of solids and powders.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -150 C up to 500 / 700 / 1000 C, RT up to 1000 / 1400 / 1600 / 1750 / 2000 / 2400 C |
| Heating speed | 0.01 up to 100 K/min |
| Temperature precision | 0.001 C |
| Balance resolution | 0.01 ug (TG 1) or 0.1 ug (TG 2) |
| Measuring range | 5 g / +/- 2500 mg (TG 1), 50 g / +/- 2500 mg (TG 2) |
| Vacuum | 10-2 mbar (depending on the vacuum pump), pressure up to 5 bar (optional) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
