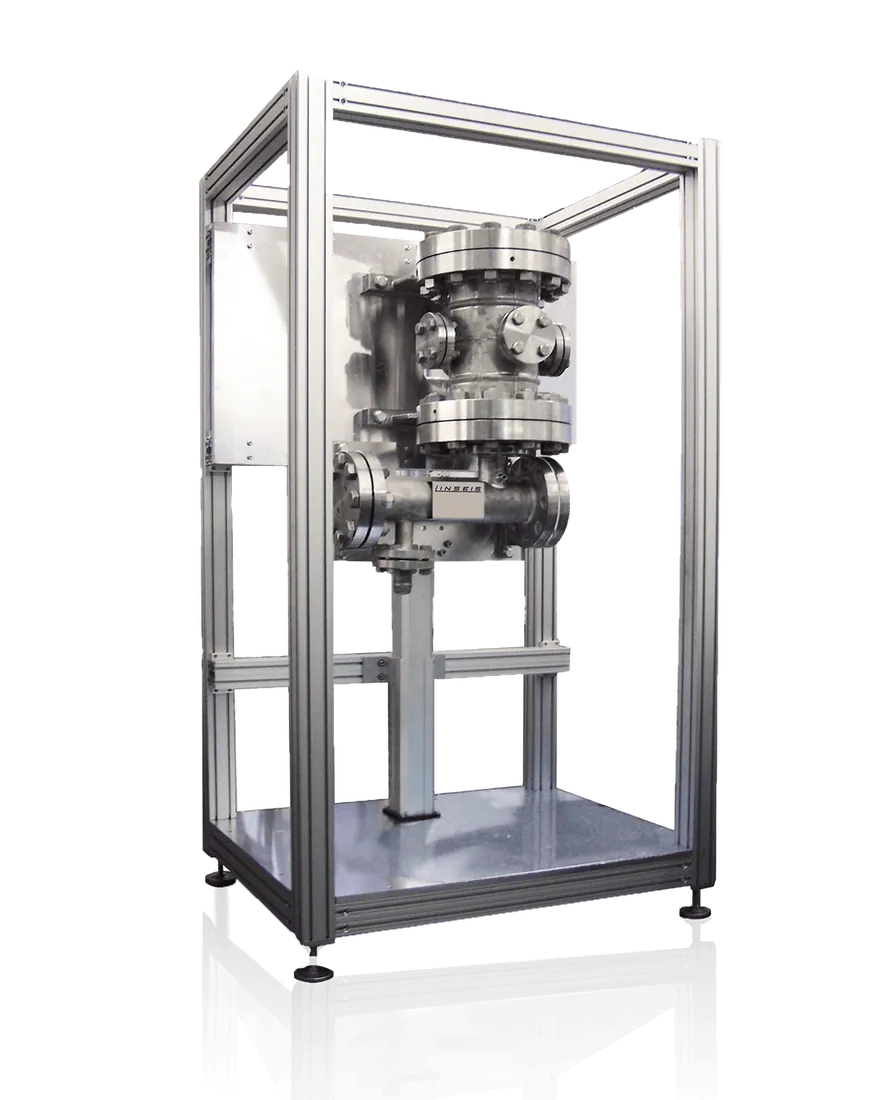

STA HP L84
Brand: Linseis | Category: Nanotechnology
The STA HP L84 is a high pressure TG-DSC instrument that records mass change and heat flow under pressure. It works at up to 150 bar and takes crucibles in gold, silver, platinum, aluminium, graphite, tungsten and stainless steel. It is used for pressure dependent reaction and stability studies.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -170 C up to 1200 C / 1600 C / 1800 C |
| Max pressure | max. 150 bar (customised solutions on request) |
| Vacuum | up to 10-4 mbar |
| Temperature precision | 0.05 C |
| Balance resolution | 0.1 ug |
| Measuring range | 25 / 2500 mg and 35000 mg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
