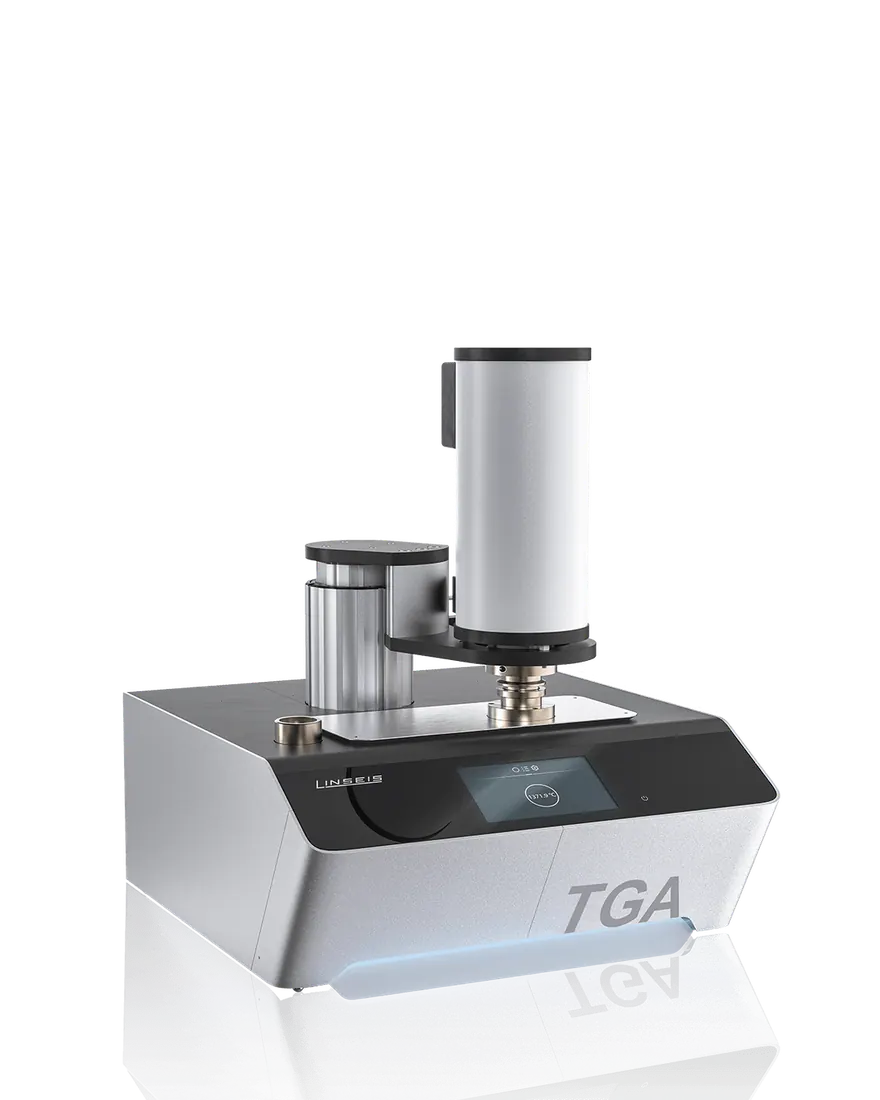

TGA L81
Brand: Linseis | Category: Nanotechnology
The TGA L81 is a high temperature thermobalance that measures the change in mass of a sample as it is heated or cooled. Interchangeable furnace types, with an optional turntable for several furnaces, cover a wide temperature range. It is used for decomposition, oxidation and composition analysis.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -150 to 500/700/1000 C, RT up to 1000/1400/1600/1750/2000/2400 C |
| Sample weight | max. 25 g |
| Balance resolution | 0.5 ug |
| Vacuum | 10E-2 mbar |
| TG sensors | several to choose from, DTA calculation included |
| Interface | USB |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Thermal Analysis & Thermophysical Measurement
- TGA L83
The TGA L83 is a toploading thermobalance made up of a digital balance and a sample holder with an integrated thermocouple. It records the change in sample mass against temperature and time. It is used for decomposition, moisture, filler content and oxidation studies on solids and powders.
- STA HP L85
The STA HP L85 is a table-top instrument for simultaneous thermal analysis that measures mass change and heat flow together. It operates from room temperature to 1200 C at pressures up to 150 bar, or under vacuum. It is used for high pressure reaction, sorption and material stability studies.
- TGA HP L85
The TGA HP L85 is a high pressure thermobalance with a high-speed micro furnace reaching 1200 C. It measures the change in sample mass at pressures up to 150 bar or under vacuum, using thermocouples of several types. It is used for sorption, catalysis and corrosion testing.
