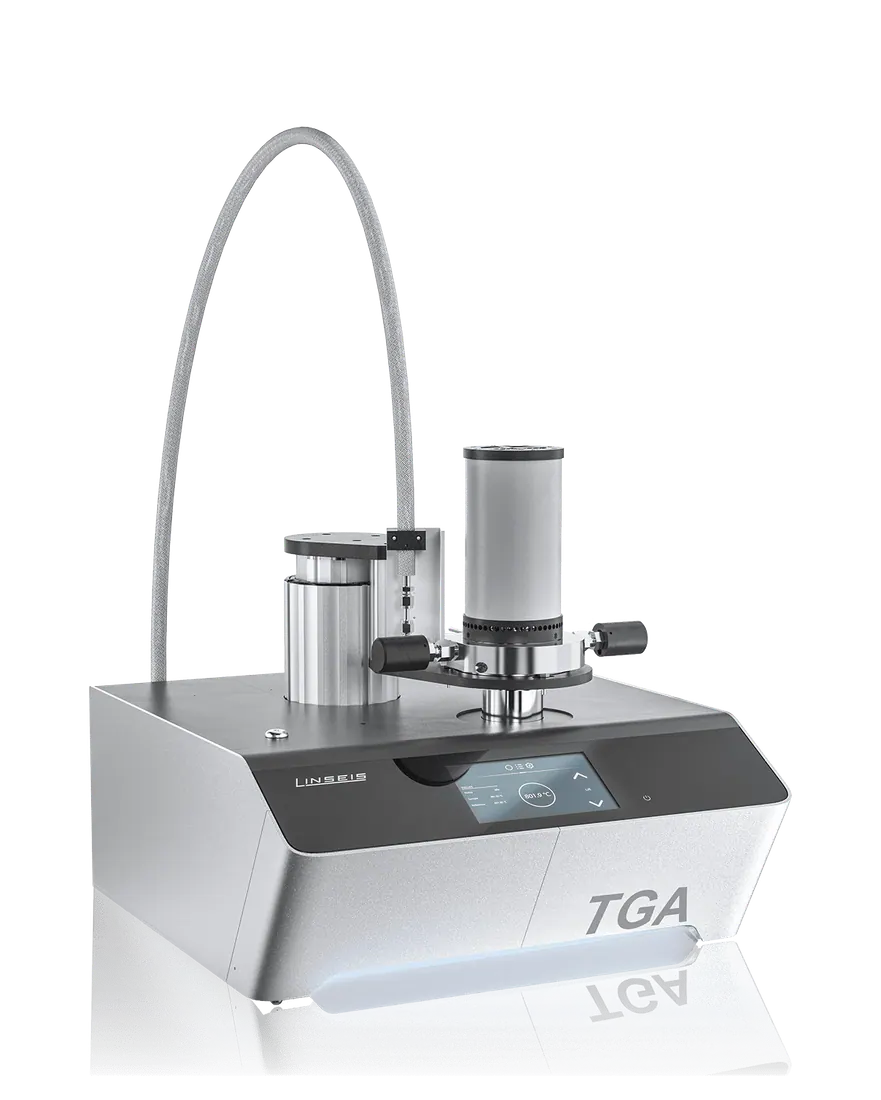

TGA HP L85
Brand: Linseis | Category: Nanotechnology
The TGA HP L85 is a high pressure thermobalance with a high-speed micro furnace reaching 1200 C. It measures the change in sample mass at pressures up to 150 bar or under vacuum, using thermocouples of several types. It is used for sorption, catalysis and corrosion testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | RT up to 1200 C |
| Pressure range | up to 150 bar |
| Sample size | up to 5 g |
| Balance resolution | 0.1 ug |
| Vacuum | 10E-4 mbar |
| TG sensors | type E/K/S/B/C |
