TGA L83
Brand: Linseis | Category: Nanotechnology

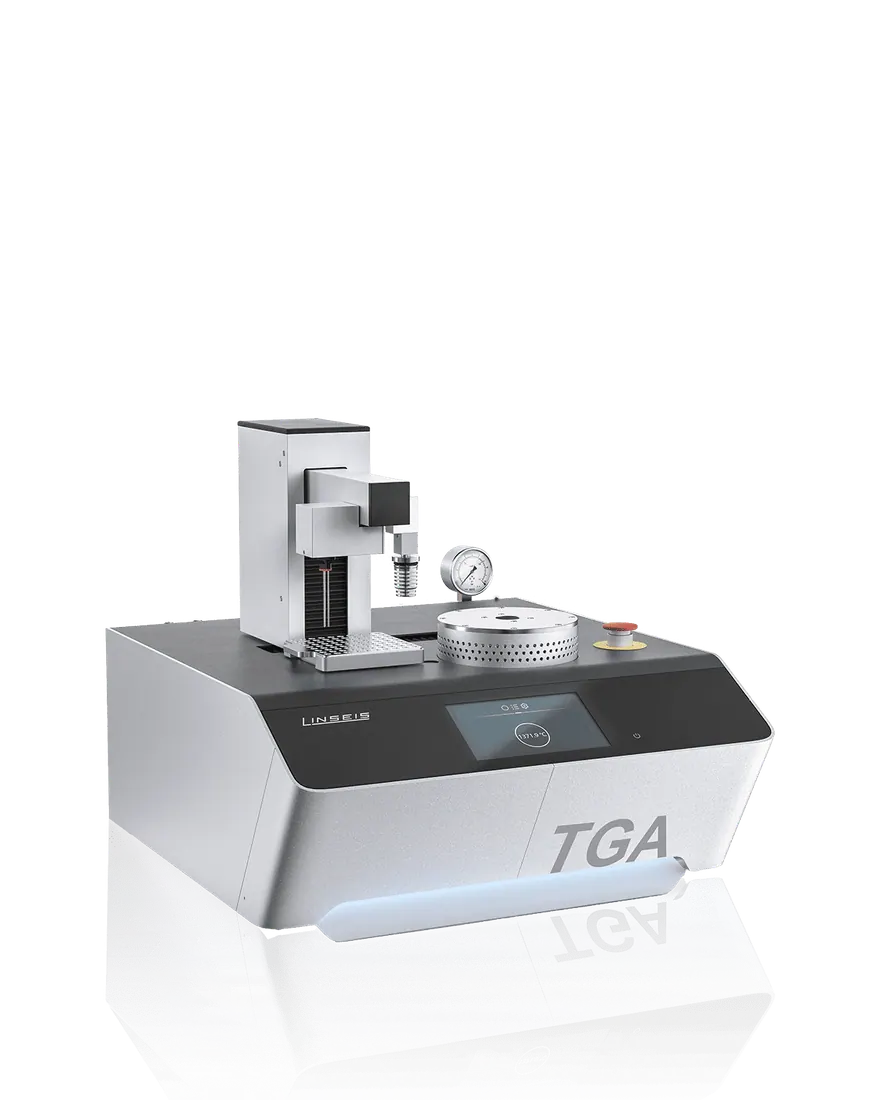

The TGA L83 is a toploading thermobalance made up of a digital balance and a sample holder with an integrated thermocouple. It records the change in sample mass against temperature and time. It is used for decomposition, moisture, filler content and oxidation studies on solids and powders.
Technical Specifications
| Parameter | Value |
|---|---|
| Heating and cooling rates | 0.001 to 250 K/min |
| Balance resolution | 0.01 / 0.02 / 0.1 ug |
| Atmospheres | inert, oxidising, reducing or vacuum (up to 10-3 mbar) |
| Pressure | up to 5 bar overpressure (optional) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
