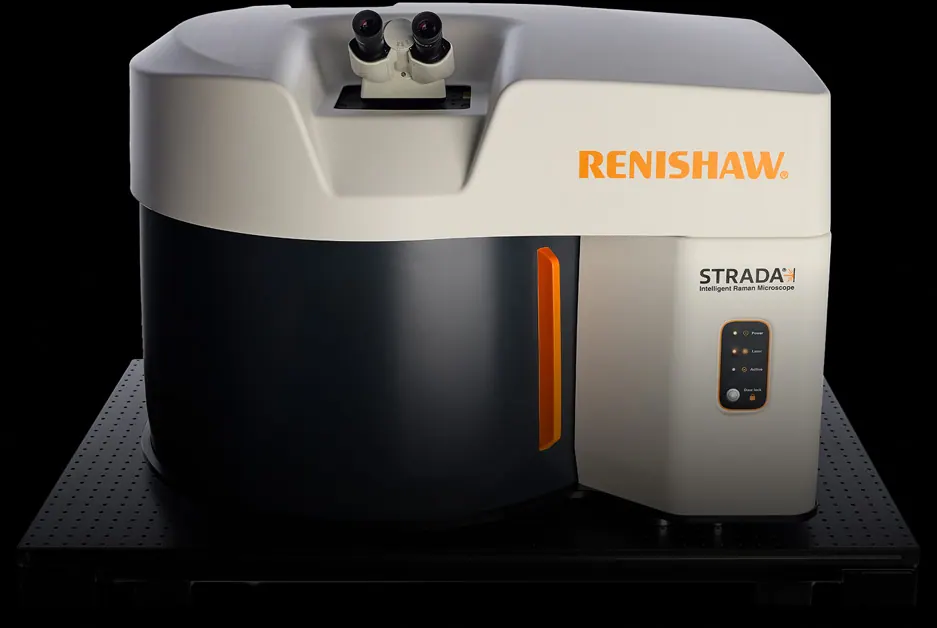

Strada Intelligent Raman Microscope
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A high performance Raman microscope built for industrial laboratories, with full automation and workflow driven Raman Workspace software. It analyses sub-micrometre particles, weak scatterers, dilute solutions and trace contaminants, and supports 21 CFR Part 11 compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Spectral resolution | better than 1 cm-1 |
| Spatial resolution | down to 250 nm |
| Data collection speed | more than 1000 spectra per second |
| Specification | Thermoelectrically cooled CCD detector |
| Specification | Macro lens, motorised objective turret and focus tracking for sample set-up |
| Specification | Integrated two-way telemetry for remote servicing |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
