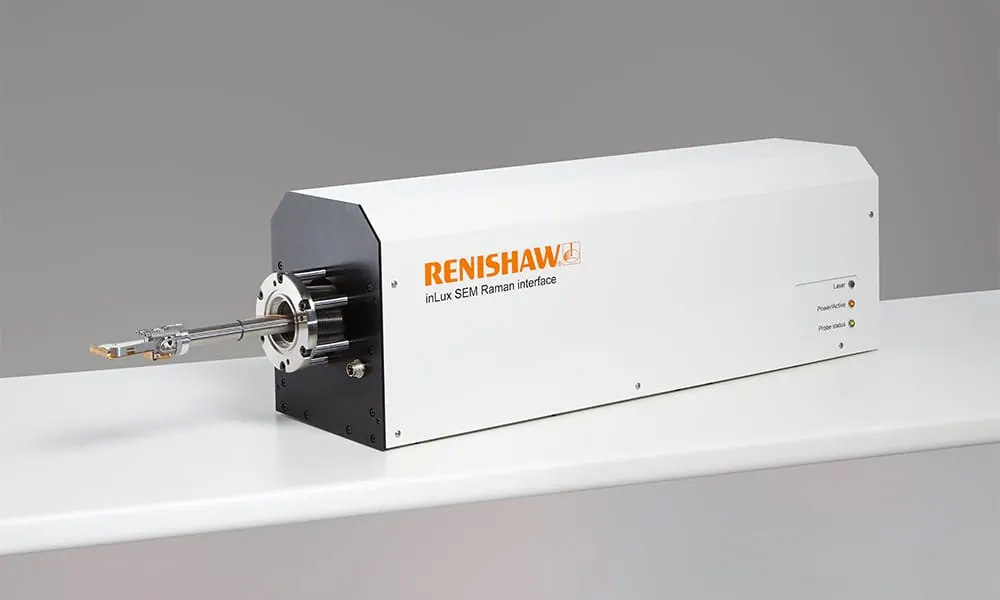

inLux SEM Raman interface
Brand: Renishaw | Category: Scientific & Laboratory Equipment
An interface that brings Raman, photoluminescence and cathodoluminescence analysis into a scanning electron microscope chamber. The sample stays still between SEM imaging and Raman collection, so the two data sets are co-located, and the probe retracts with a single click.
Technical Specifications
| Parameter | Value |
|---|---|
| Available laser excitation wavelengths | 405 nm, 532 nm, 660 nm, 785 nm, others on request |
| Lateral spatial resolution | less than 1 um at 532 nm |
| Confocal performance | less than 6 um at 532 nm |
| Mass | less than 20 kg |
| Fibre optic cable length | 4.6 m |
| Compatible spectrometers | Renishaw inVia confocal Raman microscope, Renishaw Virsa analyser |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
