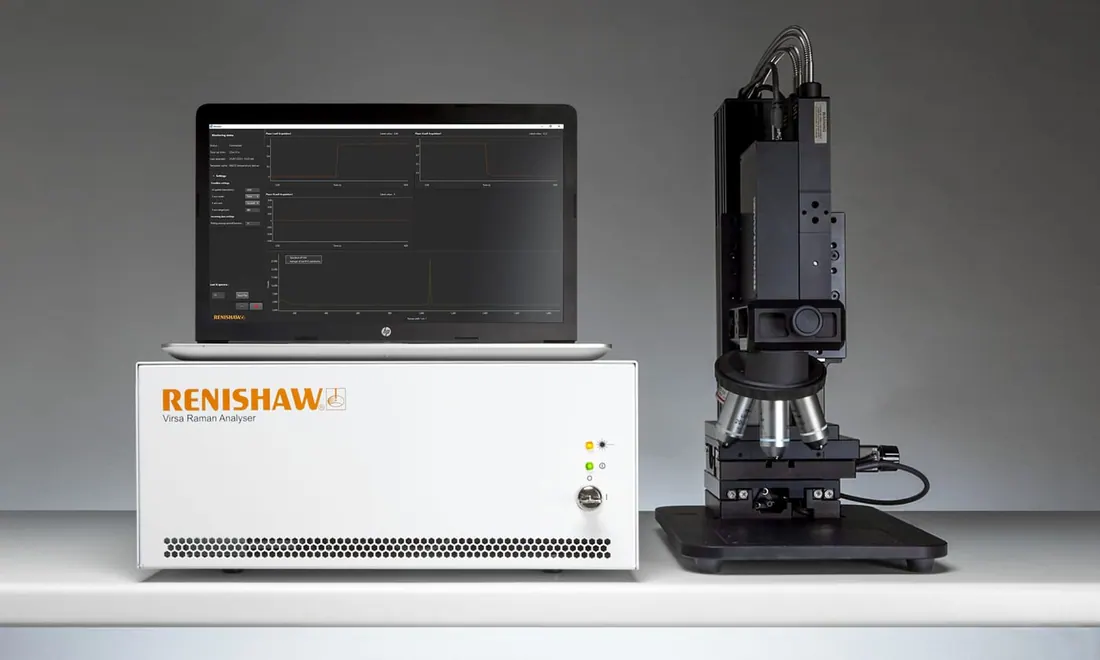

Virsa Raman analyser
Brand: Renishaw | Category: Scientific & Laboratory Equipment
A transportable Raman system with fibre optic coupled probes for microscopic and bulk analysis outside the laboratory. Automatic focus tracking lets it follow irregular, moving or changing samples in real time, and live white light viewing is used to target the measurement point.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser excitation wavelengths | 532 nm, 660 nm or 785 nm, one or two fitted |
| Spatial resolution | x/y less than 1 um, z less than 2 um |
| Probes | VRP11 for general and bulk sampling, VRP21C for high resolution confocal work |
| Standard fibre optic cable length | 5 m, other lengths available |
| Dimensions | 543 mm x 436 mm x 178 mm |
| Specification | Class 3B laser product |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
