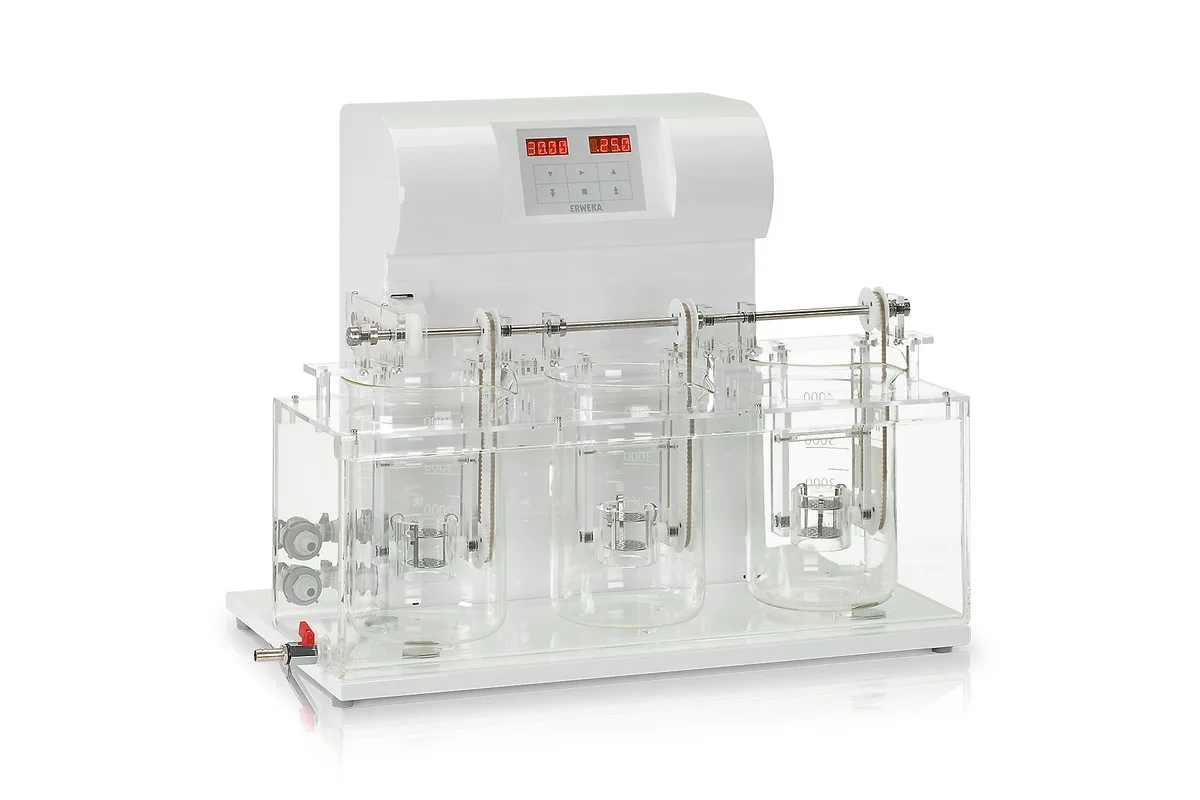

Suppository Disintegration Tester ST 35
Brand: Erweka | Category: Scientific & Laboratory Equipment
The ST 35 has three turnable test stations, each sitting in a four litre glass vessel with an optional magnetic stirrer, and a thermostatically heated water bath that Erweka describe as leak proof and double secured. Test stations turn automatically through 180 degrees at adjustable intervals. An integrated high performance flow through heating system holds accuracy to ± 0.2 °C and an internal temperature sensor drives the temperature display. Test time and set bath temperature are entered on membrane keys, with current test time and water temperature shown on clearly visible red LEDs, and an alarm can be selected to sound once the set test time has elapsed. The width of the unit lets the test stations be separated for easier cleaning.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (H x W x D) | 630 x 810 x 500 mm |
| Voltage | 110/220/240 V; 50-60 Hz |
| Interfaces | USB for printer (optional) |
| Control | Control panel with two LED displays and function keys |
| Option | Magnetic stirrer with separate control and power supply |
| Fuses | 250 VAC = 1 A T (slow) 2x, 110 VAC = 2 A T (slow) 2x |
| Protection class | I/EN 61140 |
| Protection type | IP 21/IEC 529 |
| Test runtime | Adjustable, max. 99h, 59 min |
| Printer | HP LaserJet Pro M203dne, Brother HL-L2370DN, Canon i-SENSYS LBP162dw, Kyocera ECOSYS P2235dn, HP LaserJet Pro 402dne, OKI B432kn |
| Ambient temperature during operation | + 10 °C up to +30 °C |
| Storage and transport temperature | +5 °C up to +40 °C |
| Relative air humidity | 25 to 80 % non-condensing |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
