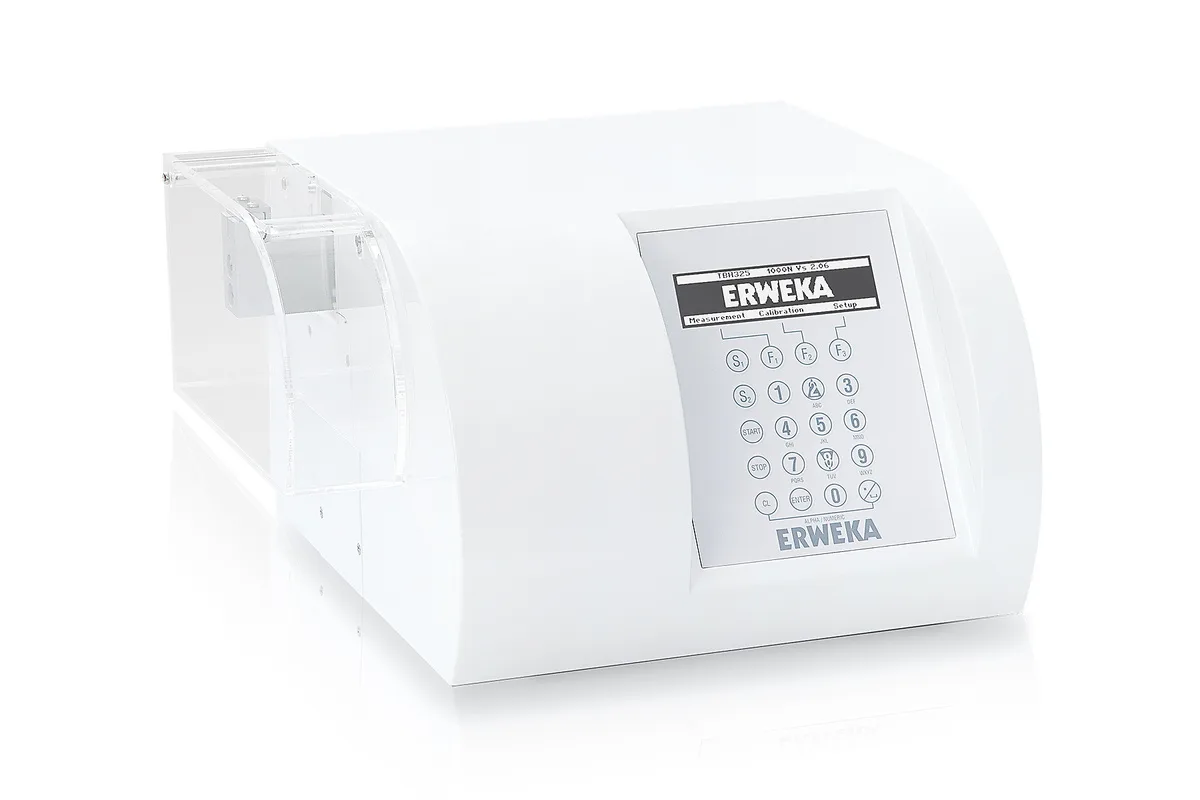

Tablet Hardness Tester TBH 325 Series
Brand: Erweka | Category: Scientific & Laboratory Equipment
The TBH 325 is Erweka's hardness or combination tester with an integrated product memory for up to 50 products, built robustly for smooth operation in production environments. Its numeric keypad with alphanumeric sub function stores nominal hardness together with three tolerances for each of up to 50 products, ready to be recalled for testing, and product names, remarks and batch or lot numbers can be entered before a test run begins. Recorded information and results can be printed on a connected printer or transferred to a computer through the LAN interface. Samples are inserted manually so all tablet types and shapes can be tested, and broken samples drop from the test station into an acrylic glass disposal container. Hardness is measured from 3 to 500 Newton in constant speed or constant force mode, with measuring sensitivity adjustable from 3 to 40 N.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 10 kg |
| Dimensions (H x W x D) | 310 x 350 x 375 mm |
| Voltage | 100 - 240 V / 50 - 60 Hz |
| Interfaces | SD card, Ethernet (LAN), RS232 C (option),1x USB-A and 1x USB-B interface for printer / Autocal 2.0 |
| Measurement range: Hardness | 3 - 500 N (extended (option): 3 - 1000 N ± 1 N) |
| Measurement range: Thickness (option) | 0.5 - 10 mm (± 0.05 mm) |
| Measurement range: Diameter / Length & Width | 0.5 - 30 mm (± 0.05 mm) |
| Measurement range: Weight (option) | Depending on the balance type |
| Constant speed | 0.1 - 3 mm/sec. |
| Constant force | 10 - 200 N/sec. |
| Calibration | Weights (statistic calibration) Optional: AutoCal 2.0 (dynamic calibration) |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Test method, dosage form and required throughput
- Exact model configuration, measuring range and method-specific accessories
- Data handling, qualification/calibration documents and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Erweka equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Laboratory Instruments
- Tablet Hardness Tester TBH 425 Series (TBH 425 D, TBH 425 TD, TBH 425 WTD)
The TBH 425 is a tablet hardness and combination tester for semi automatic measurement of up to 10 samples. Samples go into a star shaped feeder and are then transported automatically to the test station, where, depending on model, hardness and optionally thickness, diameter or length for oblongs can be measured on round or uneven samples. An alignment routine and an optional support groove in the hardness testing station help align irregularly shaped samples during breaking. The numeric keypad with alphanumeric sub function stores nominal hardness with three individual plus and minus tolerances, where T3 is the pass or fail criterion, plus comments for up to 50 products, and stored product data can be moved to other devices in the TBH 325 / 425 family by SD card or USB stick. Paired with the optional MC.NET software over the serial LAN or USB interface, the series is 100 % 21 CFR 11 compliant.
- Tablet Hardness Tester TBH 125
The TBH 125 is Erweka's basic device for tablet hardness testing in dual mode, constant speed and constant force, offering accuracy, robust design and quick handling. It is operated through a symbol keypad that makes entering the number of samples straightforward, and up to three physical parameters can be tested: hardness, diameter or length, and thickness. Results including date and time appear on two bright LED displays and can be printed through the standard USB printer interface. Calibration is done either statically with weight stones or dynamically with AutoCal 2.0 using menu guided three point calibration, and the unit produces a calibration print out with individual calibration data, service date and time and serial number.
- Manual 5-Parameter Hardness Tester TBH II
The TBH II covers manual 5 parameter tablet hardness testing in one compact instrument, built for pharmaceutical quality control and research laboratories. It measures hardness up to 500 N, thickness, width for oblongs, diameter for round tablets or length for oblongs, and weight, giving pharmacopoeia compliant tablet testing across all five properties. A top mounted touch interface guides the operator through each test step with TestAssist, supported by robust mechanics and an ergonomic, space saving design. Four interchangeable magnetic inserts, flat and with 1, 2 or 3 mm groove radius, position and align tablets from 1 to 30 mm as standard, with an optional user changeable breaking jaw for larger tablets from 31 to 60 mm.
