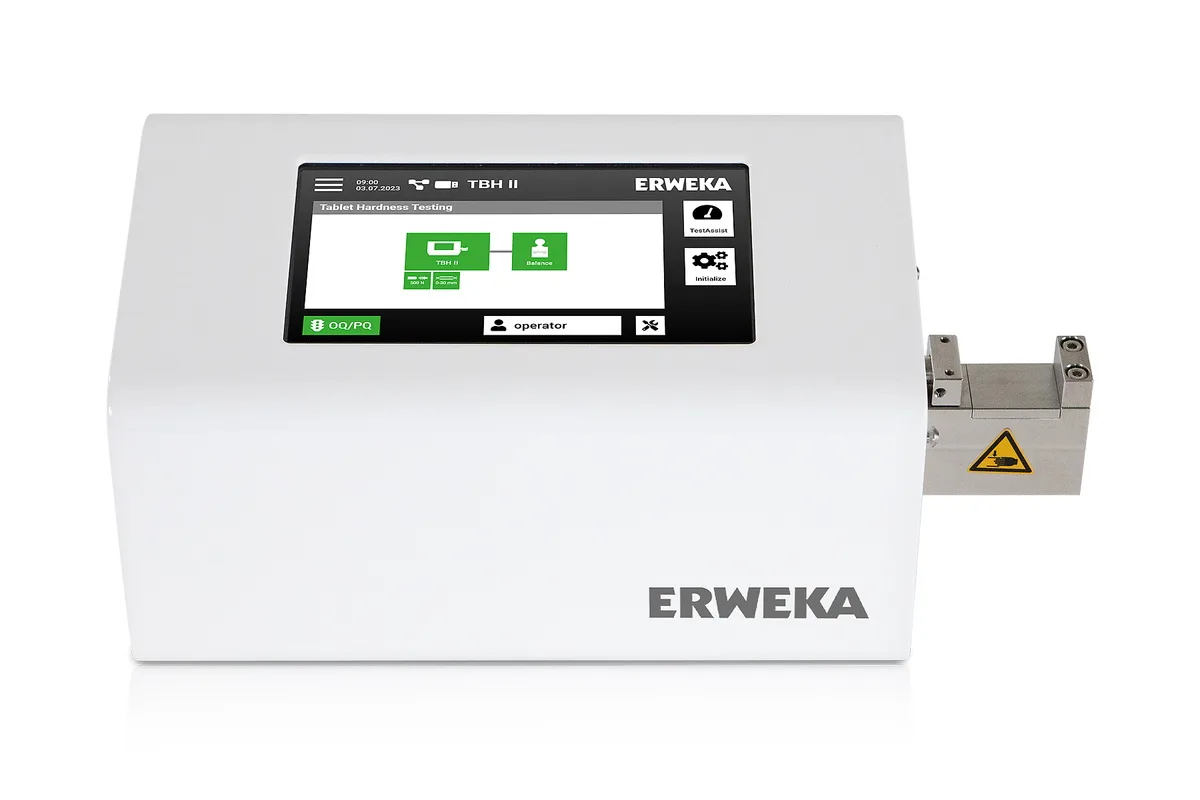

Manual 5-Parameter Hardness Tester TBH II
Brand: Erweka | Category: Scientific & Laboratory Equipment
The TBH II covers manual 5 parameter tablet hardness testing in one compact instrument, built for pharmaceutical quality control and research laboratories. It measures hardness up to 500 N, thickness, width for oblongs, diameter for round tablets or length for oblongs, and weight, giving pharmacopoeia compliant tablet testing across all five properties. A top mounted touch interface guides the operator through each test step with TestAssist, supported by robust mechanics and an ergonomic, space saving design. Four interchangeable magnetic inserts, flat and with 1, 2 or 3 mm groove radius, position and align tablets from 1 to 30 mm as standard, with an optional user changeable breaking jaw for larger tablets from 31 to 60 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Parameters | Weight, thickness, width, length / diameter, hardness |
| Measurement range: Hardness | 10 - 500 N (± 1 N) |
| Hardness readability | 0.1 N |
| Measurement range: dimensions (thickness, width, diameter / length) | 1 - 30 mm (± 0.05 mm) / 31 - 60 mm (optional) |
| Dimensions readability | 0.1 mm |
| Measurement range: Weight | Max. 52 g (± 0.1 mg) |
| Weight readability | 0.1 mg |
| Measurement principle: Constant speed | 0.03 - 6.00 mm/s (default 2.3 mm/s) |
| Measurement principle: Constant force | 10 - 200 N per second |
| Units | Hardness: Newton (N), Strong Cobb (SC), kilopond (kp), pound-force (lbf) Dimensions: millimeter (mm), inch (in) Weight: gram (g), milligram (mg) |
| Method management | 100 methods |
| User management | 100 users |
| Reports | 18 reports stored |
| Data export (e.g. LIMS) | XML via LAN, Export Manager |
| USP / EP chapter | USP <1217> Tablet Breaking Force / EP 2.9.8 |
| Device control | 7“ Touch Interface |
| Language | English |
| Date & time | ISO / EU / US |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
