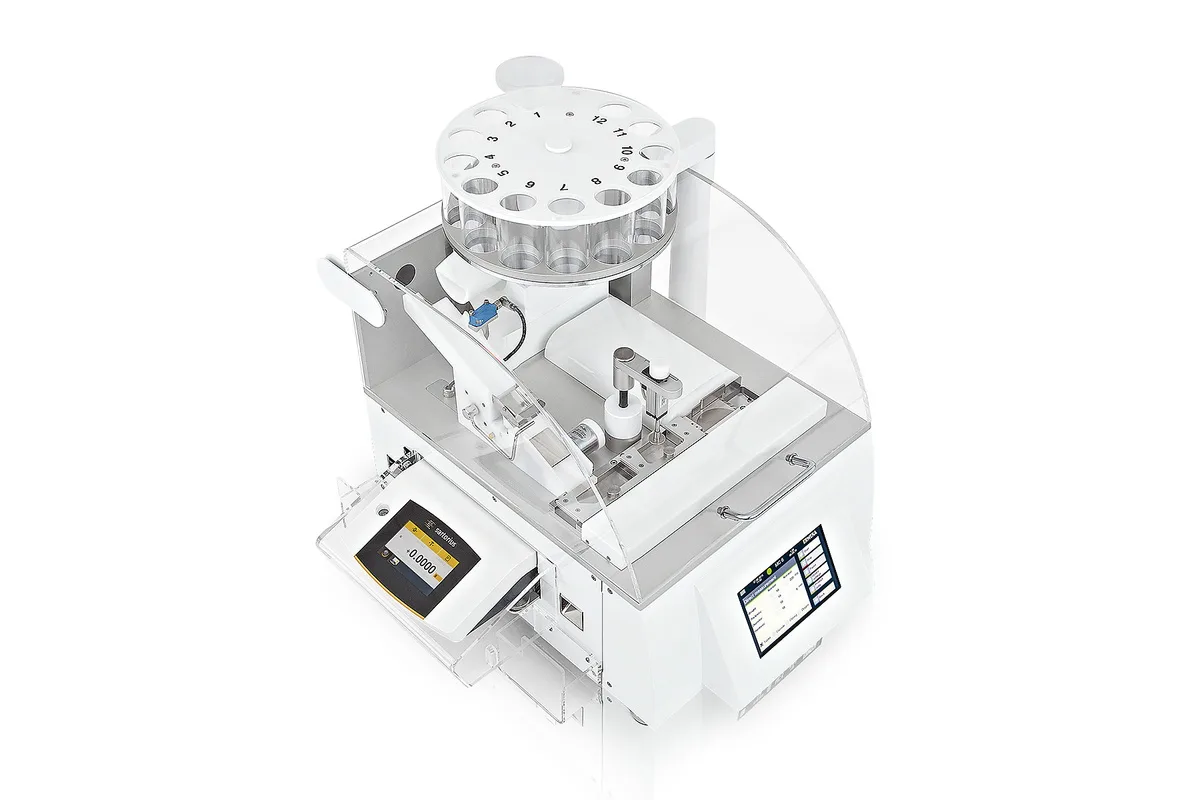

Tablet Hardness Tester MultiCheck 6
Brand: Erweka | Category: Scientific & Laboratory Equipment
MultiCheck 6 is a fully automatic combination tester built for ease of operation, maximum efficiency and operator convenience. Among its features are an intuitive touch display carrying integrated MC.NET software functionality, a capsule weight measuring system and a patented Oblong Navigator, and Erweka claim an unsurpassed low noise level and the cleanest operation in its class. The empty capsule weight measuring system determines capsule weight and deducts it automatically from the weight of filled capsules, with direct ejection immediately after weight measurement to speed the process up. Proven features are retained: the instrument tests up to five tablet parameters, is fully automated and 100 % compliant with all pharmacopoeias worldwide. It stores 100 products and methods as standard and holds up to 1 million test results.
Technical Specifications
| Parameter | Value |
|---|---|
| Parameters | Weight, thickness, width, length / diameter, hardness |
| Measurement range: Hardness | 3 - 500 N (±1 N) (optional 3 - 1000 N) Readability: 1 N |
| Measurement range: Diameter / Length & Width | 0.5 - 30 mm (± 0.05 mm) Readability: 0.01 mm |
| Measurement range: Thickness | 0.5 - 10 mm (± 0.05 mm) Readability: 0.01 mm |
| Measurement range: Weight | Sartorius Entris II BCE124I-1S (default) 0.16 g - 120 g (± 0.1 mg) Readability: 0.1 mg |
| Measurement principle: Constant speed | 0.1 - 3.0 mm / sec (default 2.3 mm / sec) |
| Measurement principle: Constant force | 10 - 100 N / sec |
| Test volume | Max. 100 samples, with magazine option 12 x 100 |
| Device control | 7" Touch display |
| Units | Hardness: N, Sc, kp, lbf Diameter / Length, Width, Thickness: mm, in Weight: g, mg |
| Method & product management | 100 products & methods Evaluation T1 / T2 / T3 or min / max |
| User management | 100 users |
| Interfaces | 1x USB-A, 1x USB-B, 1x SD card, 1x RJ-45 |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
