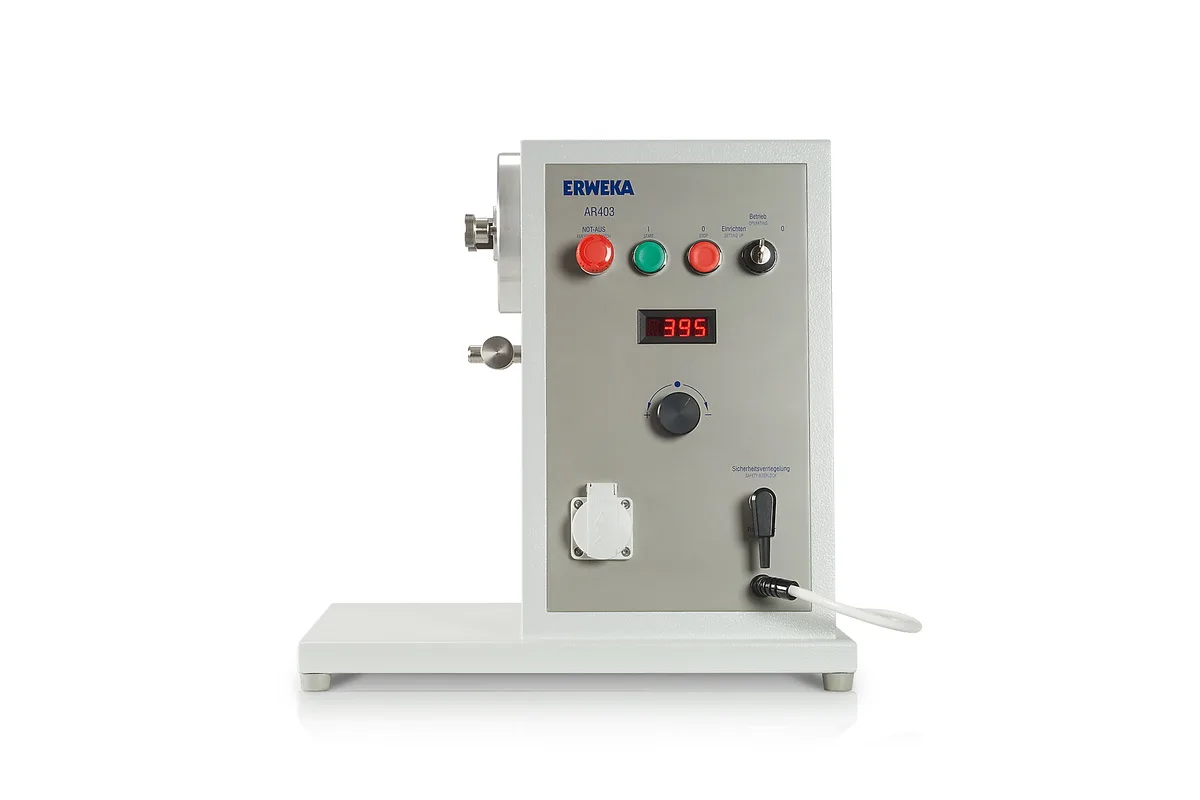

All-Purpose Equipment Drive Unit AR 403
Brand: Erweka | Category: Scientific & Laboratory Equipment
Erweka's All-Purpose system is built on a powerful drive unit available in two versions, with attachments connected quickly through a coupling. The AR 403 uses a three phase AC motor and a sturdy ball bearing worm gear drive that is completely maintenance free and delivers a maximum output torque of 23 Nm. Electronic speed control varies between 20 and 400 rpm, set on a digital dial, and permanent nominal to actual adjustment holds the preselected speed even under varying load. The AR 403-S shares the design but has a different drive train intended for heavy use. Attachments published for the system include a ball mill, conical mill, cube mixer, double cone mixer, drum hoop mixer, high speed mixer, planetary stirrer, v-mixer, wet granulator, double roll crusher, pelletizer, coating pan, polishing drum and the FDS filling and dosing unit for ointments.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30 kg |
| Dimensions (H x W x D) | 440 x 450 x 400 mm |
| Voltage | 98 - 136 V / 50-60 Hz, 196-264 V / 50-60 Hz; 2100 W |
| Protection class | I/EN 61140 |
| Protection type | IP 21/IEC 529 |
| Motor type | 3-phase AC motor |
| Motor power | 740 W |
| Motor insulation | Class F |
| Motor speed | 20-400 rpm |
| Motor tolerance (coasting) | +/- 1 rpm |
| Gear type | Worm gear |
| Gear speed | 20-400 rpm |
| Gear max. torque | 23 Nm |
| Gear efficiency | 89% |
| Timer settings | Hours/minutes |
| Time (max.) | 9 h 59 min |
| Time tolerance | +/- 1 s |
| Ambient temperature during operation | + 10 °C up to +30 °C |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
