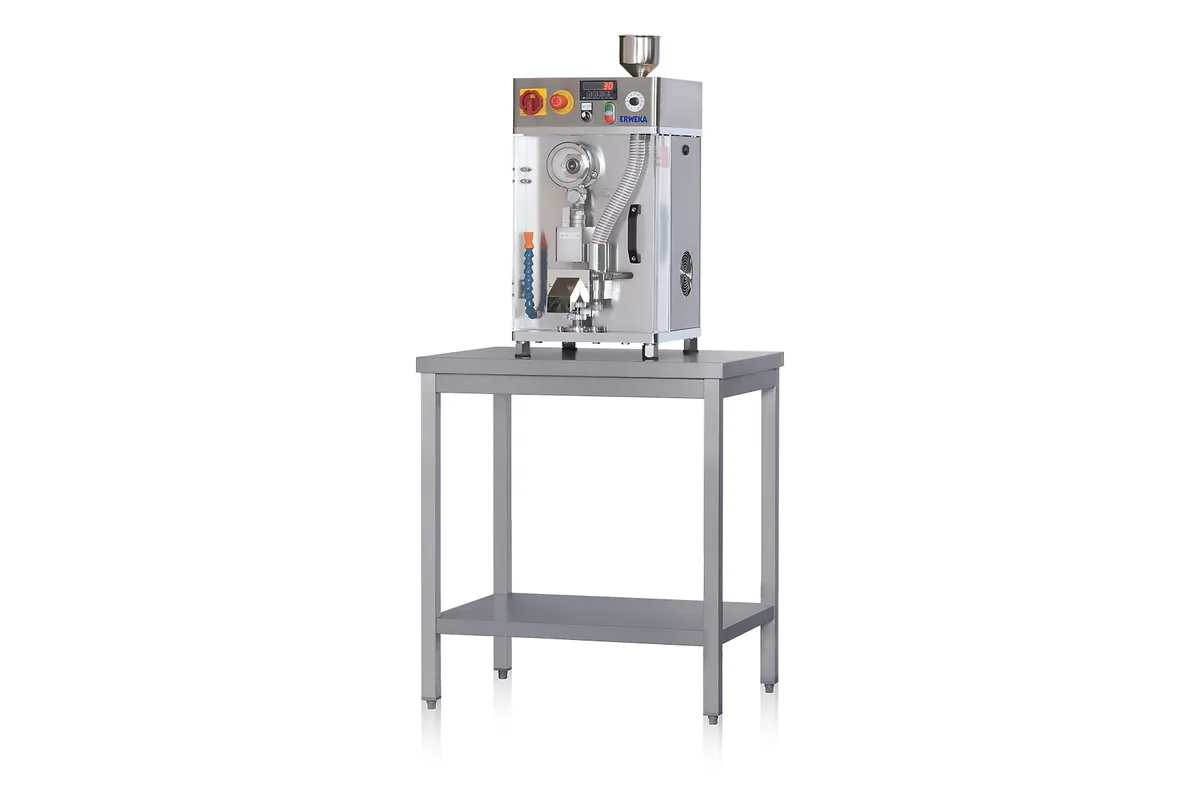

Tablet Press EP-1
Brand: Erweka | Category: Scientific & Laboratory Equipment
The EP-1 is a desktop tablet press for research and development work. This single punch eccentric press makes tablets and odd shaped products up to 20 mm in diameter and runs automatically, filling the die with powder or granule, compressing the material and ejecting the tablet continuously. Compression force of up to 3 tons and filling depth of up to 17 mm are both easy to adjust. Components are hard chrome covered or made from stainless steel AISI 304, with acrylic glass for the front door, and the frame plates are 1.0332 StW22 bright chrome plated. Throughput reaches a maximum of 4,000 tablets per hour.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 135 kg |
| Dimensions (H x W x D) | 695 x 385 x 425 mm |
| Dimensions (H x W x D) with attachment parts | 797 x 408 x 503 mm |
| Voltage | 200 - 240 V -15% +10% / 50-60 Hz |
| Electric voltage | 2.2 kVA |
| Protection class | I/EN 61140 |
| Protection type | IP 21/IEC 529 |
| Press speed | Infinitely variable |
| Max. tablet output | 4000 tablets/hour |
| Max tablet diameter | 20 mm |
| Max. filling depth | 17 mm |
| Max. compression force | 3 t |
| Ambient temperature during operation | + 10 °C up to +30 °C (Ambient temperature at least 5°C lower than test temperature) |
| Storage and transport temperature | +5 °C up to +40 °C |
| Relative air humidity | 25 to 80 % non-condensing |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
