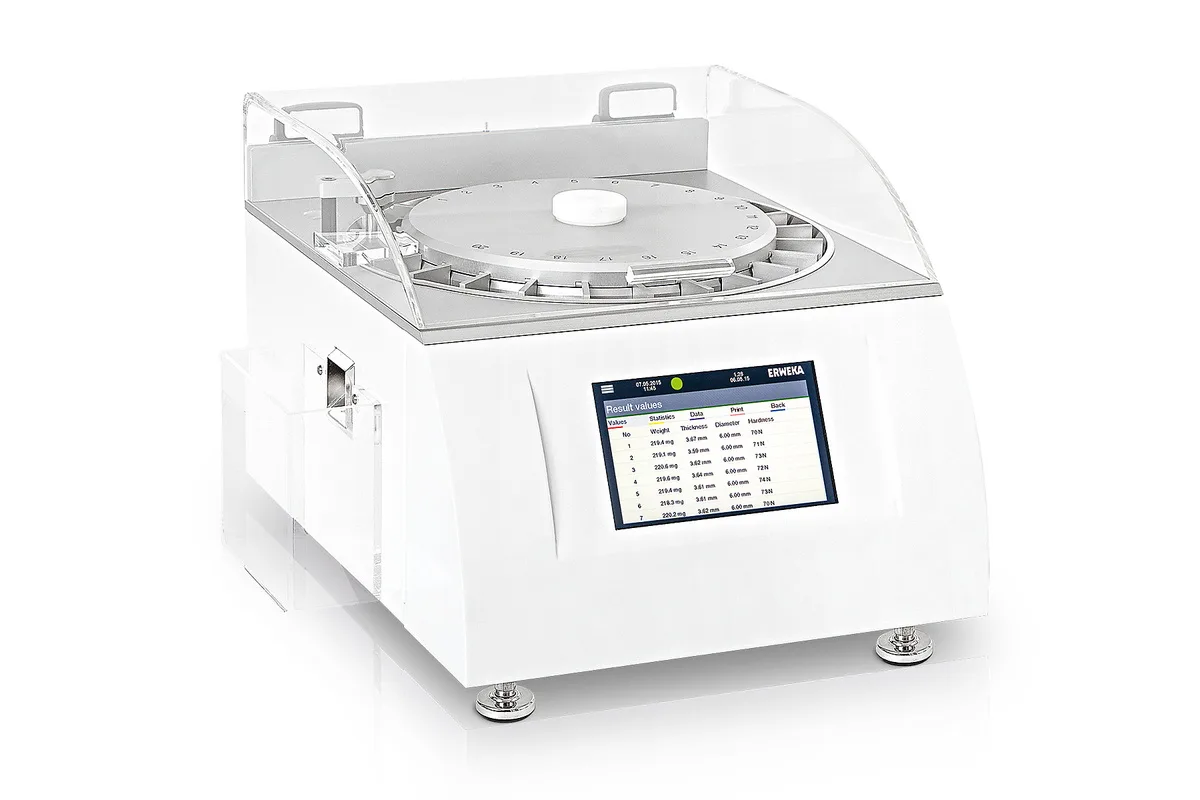

Tablet Hardness Tester EasyCheck
Brand: Erweka | Category: Scientific & Laboratory Equipment
EasyCheck is a compact, fully automated entry level combination tester for routine tablet hardness work. It measures up to five parameters in a single workflow, weighing samples automatically through its integrated weighing cell so no manual handling is needed. The patented Oblong Slider aligns tablets precisely for consistent results across different tablet shapes, and a star shaped rotary magazine in stainless steel and aluminium provides 20 test positions while leaving the test process fully visible. An intuitive touchscreen stores up to 100 products, methods and users, and the instrument can be fitted with a test memory for up to 1 million test results, an audit trail light function for paperless reporting and CSV and XML data export.
Technical Specifications
| Parameter | Value |
|---|---|
| Measurement range: Hardness | 3 - 500 N (±1 N) (optional 3 - 1000 N) |
| Measurement range: Diameter / Length & Width | 0.5 - 30 mm (± 0.05 mm) |
| Measurement range: Thickness | Linear potentiometer 0.5 - 10 mm (± 0.05 mm) |
| Measurement range: Weight | 20 mg - 120 g (± 0.1 mg) |
| Measurement principle: Constant speed | 0.1 - 3.0 mm / sec (Default: 2.3 mm / sec) |
| Measurement principle: Constant force | 10 - 100 N / sec |
| Control | 7'' touch display, with support for USB keyboards |
| Interfaces | 1x USB-A, 1x USB-B, 1x SD card, 1x RJ45 |
| Voltage | 110 - 240 V / 50 - 60 hz |
| Fuses | 2 x 3.15 A |
| Protection class | I |
| Protection type | IP 21 |
| Weight | 30 kg |
| Dimensions (W x H x D) | 360 mm (422 mm with collection container) 321 mm (or 646 mm with open acrylic cover) 467 mm |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Test method, dosage form and required throughput
- Exact model configuration, measuring range and method-specific accessories
- Data handling, qualification/calibration documents and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Erweka equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
