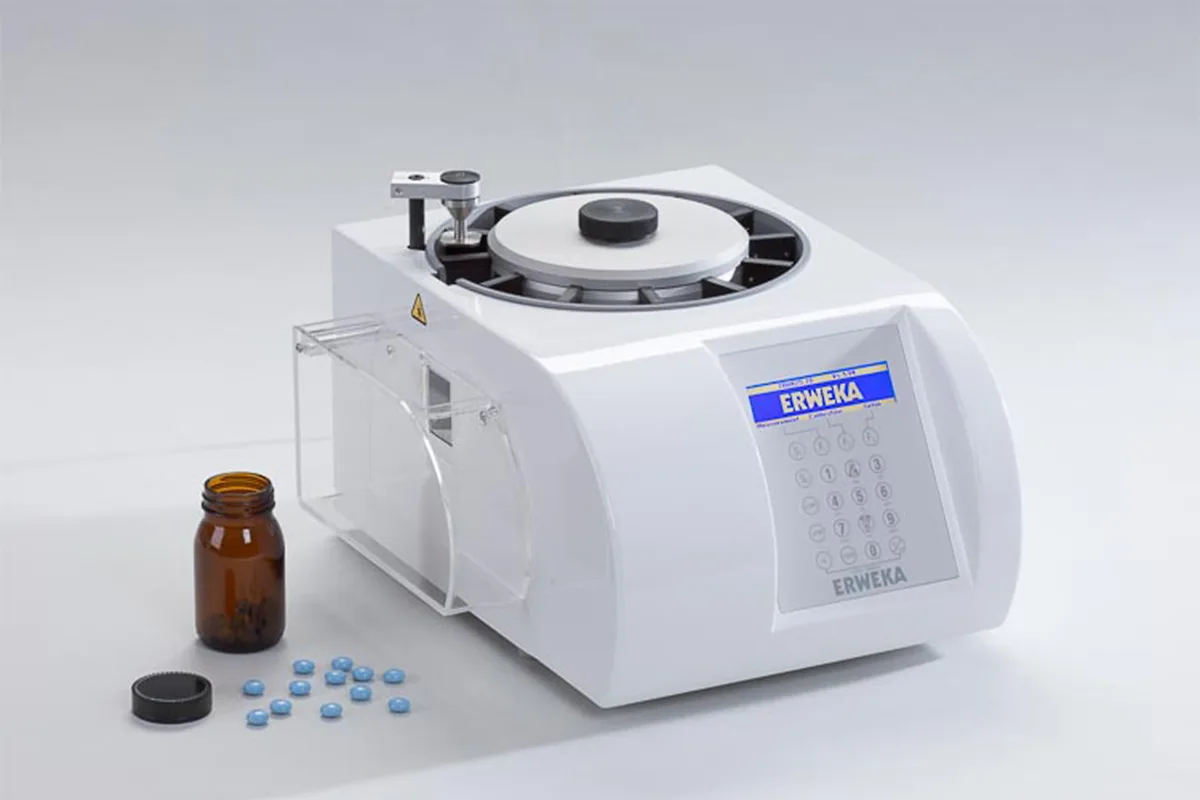

Tablet Hardness Tester TBH 425 Series (TBH 425 D, TBH 425 TD, TBH 425 WTD)
Brand: Erweka | Category: Scientific & Laboratory Equipment
The TBH 425 is a tablet hardness and combination tester for semi automatic measurement of up to 10 samples. Samples go into a star shaped feeder and are then transported automatically to the test station, where, depending on model, hardness and optionally thickness, diameter or length for oblongs can be measured on round or uneven samples. An alignment routine and an optional support groove in the hardness testing station help align irregularly shaped samples during breaking. The numeric keypad with alphanumeric sub function stores nominal hardness with three individual plus and minus tolerances, where T3 is the pass or fail criterion, plus comments for up to 50 products, and stored product data can be moved to other devices in the TBH 325 / 425 family by SD card or USB stick. Paired with the optional MC.NET software over the serial LAN or USB interface, the series is 100 % 21 CFR 11 compliant.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 15 kg |
| Dimensions (H x W x D) | 240 x 350 x 375 mm |
| Voltage | 100 - 240 V / 50 - 60 Hz |
| Interfaces | SD card, Ethernet (LAN), RS 232 C (option), 1x USB-A and 1x USB-B interface for printer / Autocal 2.0 |
| Measurement range: Hardness | 3 - 500 N (extended (option): 3 - 1000 N ± 1 N) |
| Measurement range: Thickness (option) | 0.5 - 10 mm (± 0.05 mm) |
| Measurement range: Diameter / Length & Width | 0.5 - 30 mm (± 0.05 mm) |
| Measurement range: Weight (option) | Depending on the balance type |
| Constant speed | 0.1 - 3 mm/sec. |
| Constant force | 10 - 200 N/sec. |
| Calibration | Weights (statistic calibration) Optional: AutoCal 2.0 (dynamic calibration) |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
