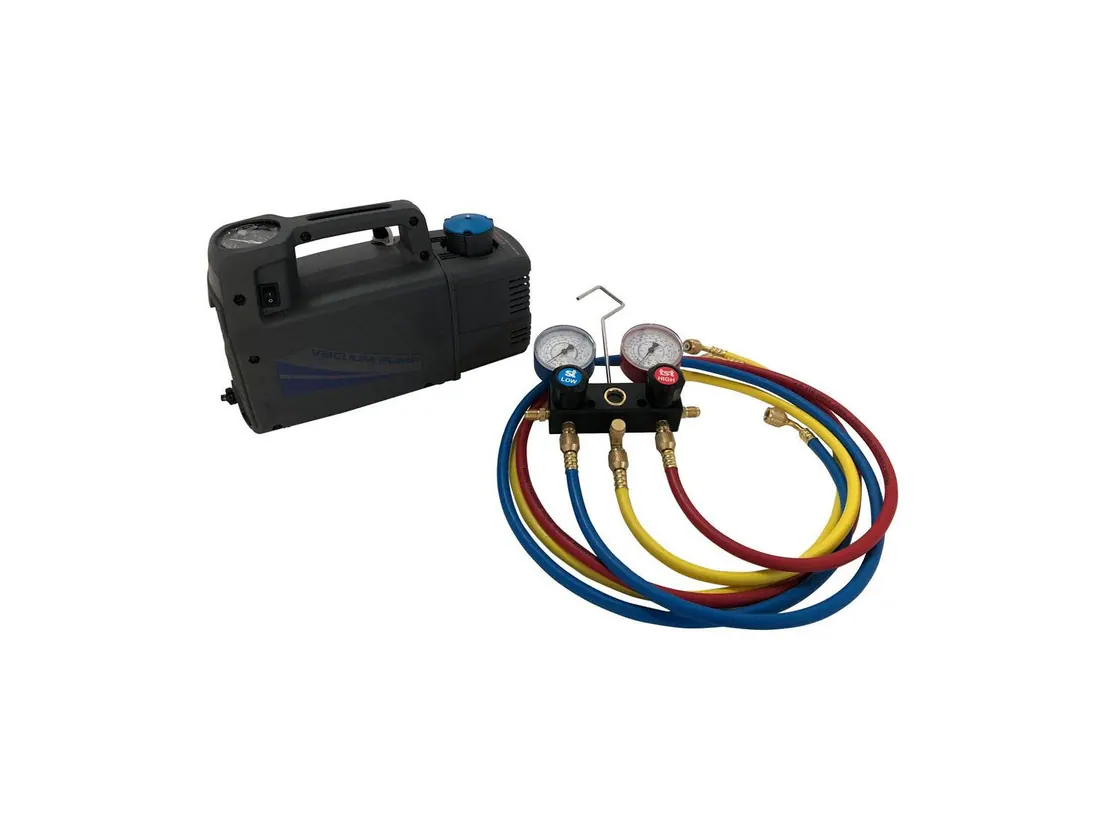

T/KIT1: Maintenance Kit containing Vacuum Pump, Hoses and Manometers
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A charging and evacuation kit for refrigeration training circuits. It brings together a spark free vacuum pump, a set of low permeability charging hoses and a manifold gauge set so students can empty and recharge a system safely.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Spark free two stage vacuum pump with solenoid valve and vacuum gauge |
| Specification | Vacuum pump flow rate 70 litres per minute, power 1/3 HP, vacuum capacity 0.02 mbar |
| Specification | Charging hose set in red, blue and yellow, length 1.5 m, female 1/4 inch SAE connections |
| Specification | Hoses in reinforced synthetic rubber with high refrigerant resistance and low permeability |
| Specification | Manifold gauge set for air conditioning and two way refrigeration systems |
| Specification | Gauges of 60 mm diameter with scales for R-22, R-404a and R-134a |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
