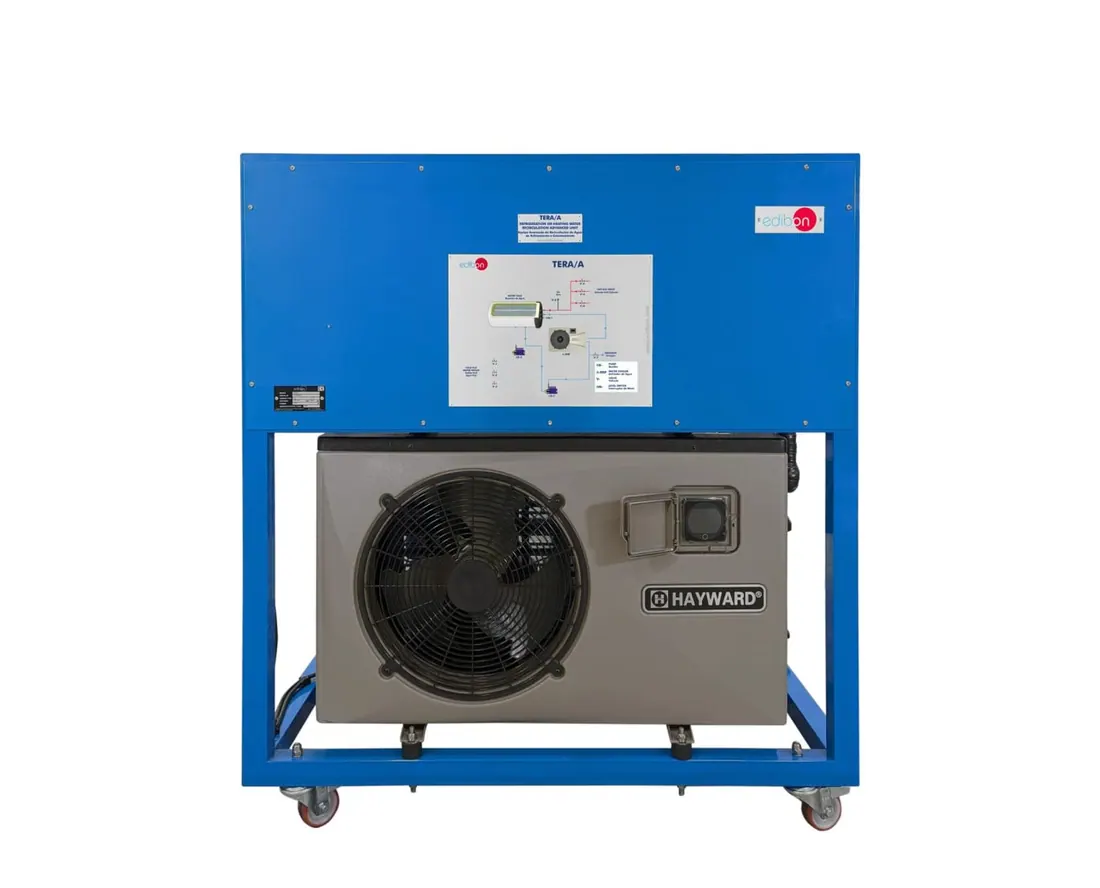

TERA/A: Refrigeration or Heating Water Recirculation Advanced Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
The advanced reversible heat pump for supplying chilled or heated water at a constant flow. It is used for heat transfer and fluid temperature control work, where a second flow or a static volume is conditioned by indirect contact.
Technical Specifications
| Parameter | Value |
|---|---|
| Heat pump flow rate | 3.1 m3/h, heating power range 1.62 to 7.33 kW |
| Electric power range | 0.15 to 1.17 kW, coefficient of performance range 11.04 to 6.3 |
| Fan speed | 600 to 700 rpm, 400 rpm in quiet mode |
| Two dosing pumps | maximum flow rate 4.8 m3/h, maximum pressure 2.2 bar, power 0.37 kW |
| Specification | Tank volume 100 l, internally vitrified |
| Specification | Six manual ball valves for water inlet and outlet plus drainage and venting valves |
