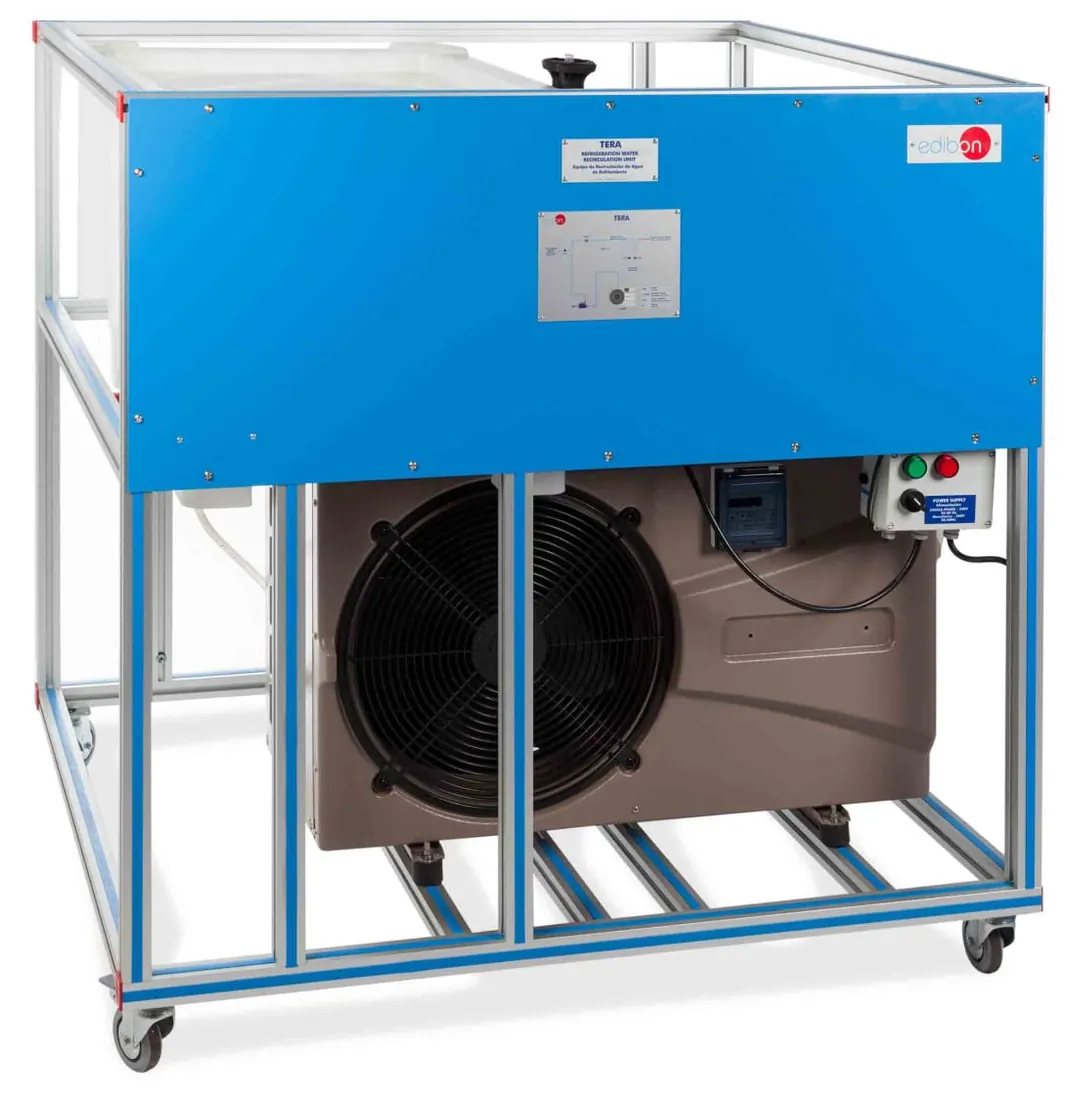

TERA: Refrigeration or Heating Water Recirculation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A reversible heat pump that supplies a continuous flow of chilled or heated water to other teaching units. Water falls by gravity from the storage tank through the heat pump and a centrifugal pump returns it to the tank.
Technical Specifications
| Parameter | Value |
|---|---|
| Reversible heat pump | consumed power 1.1 kW, heat capacity 5.5 kW |
| Specification | Coefficient of performance higher than 4.3 |
| Specification | Rotary compressor with titanium exchanger |
| Specification | Fan power 50 W, rotational speed 770 rpm |
| Specification | Electronic defrost management for operation down to -2 degrees C, defrost by cycle inversion |
| Refrigerant | R410A |
