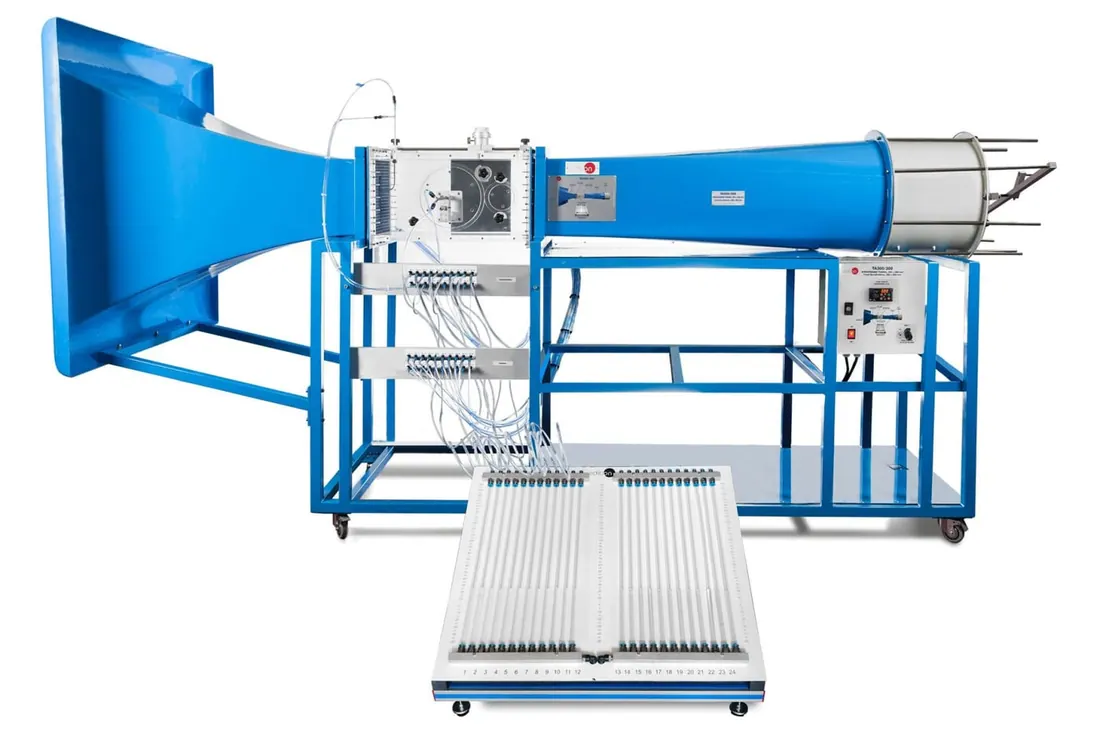

TA300/300: Aerodynamic Tunnel, 300X300 mm
Brand: EDIBON | Category: Scientific & Laboratory Equipment
TA300/300 is an open circuit subsonic wind tunnel with a 300 x 300 mm working section. A balance measures lift and drag on aerofoils, cylinders and other models over a range of speeds and angles of attack. A computer controlled version, TA300/300C, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 3500 x 1300 x 1900 mm approx |
| Weight | 200 Kg approx |
| Specification | Transparent working area of 300 x 300 mm and length of 600 mm to assemble and test the different models |
| Air velocity in the working area | < 34 m/s |
| Variable speed axial-flow fan power | 1.5 kW |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
