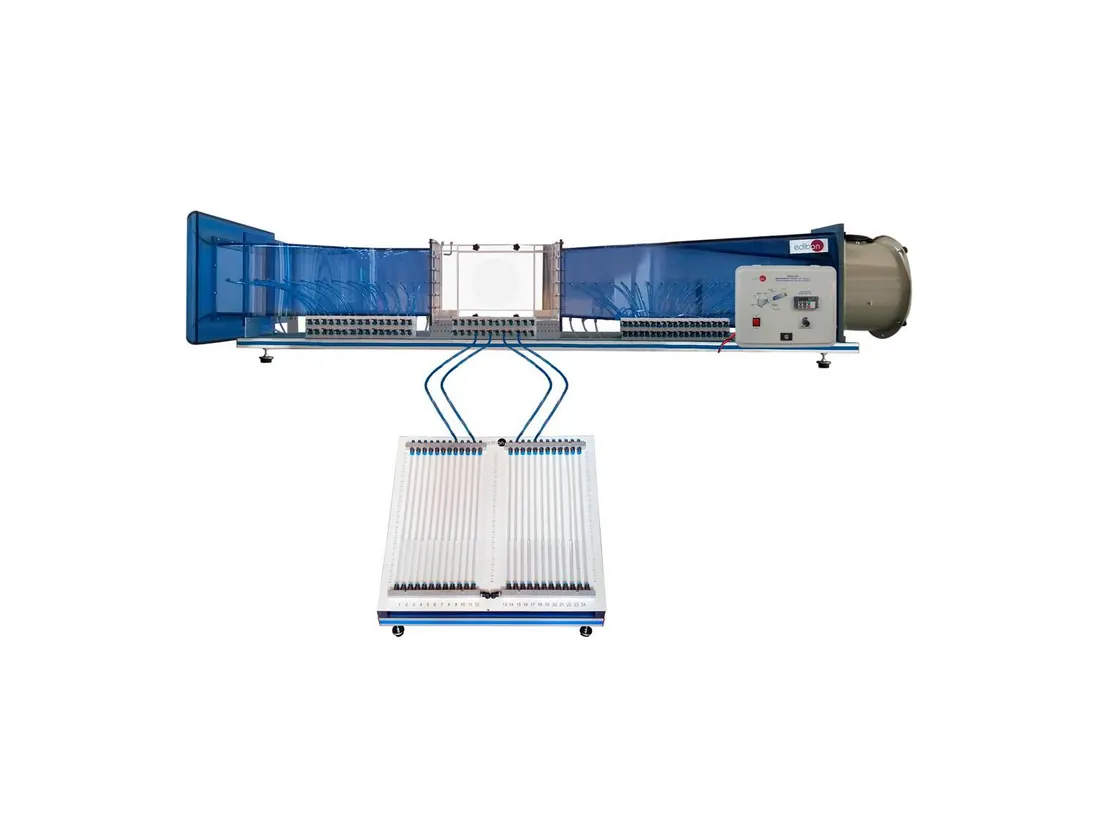

TA50/250: Aerodynamic Tunnel, 50X250 mm
Brand: EDIBON | Category: Scientific & Laboratory Equipment
TA50/250 is a small subsonic wind tunnel with a 50 x 250 mm working section. Aerofoil models fitted with pressure tappings allow the pressure distribution, lift and drag to be measured at different angles of attack. A computer controlled version, TA50/250C, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 2720 x 820 x 700 mm approx |
| Weight | 220 Kg approx |
| Specification | Transparent working area of 50 x 250 mm to assemble and test the different models |
| Variable speed axial-flow fan velocity range | 0 to 2800 rpm |
| Air velocity in the working area | 0 to 27 m/s |
| Twenty manometric tubes of 250 mm length. Tubes inner diameter | 8 mm |
