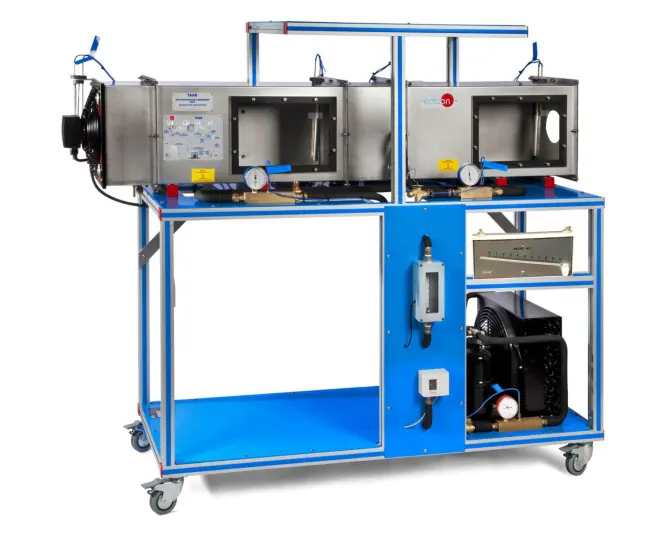

TAAB: Air Conditioning Laboratory Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Stainless steel test tunnel with an evaporator, heating elements and steam injection, used to demonstrate heating, cooling, humidification and dehumidification of air. The refrigeration circuit is instrumented so the cycle can be studied alongside the air processes.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Stainless steel testing tunnel with two windows and an axial fan |
| Specification | Two heating elements, one at the evaporator inlet and one at the outlet |
| Specification | Four hygrometers along the tunnel, each with wet and dry bulb temperature sensors |
| Specification | Inclined manometer measures the air flow |
| Specification | Two steam lines inject steam from a steam generator, not included |
| Specification | Computer controlled version available as TAAC |
