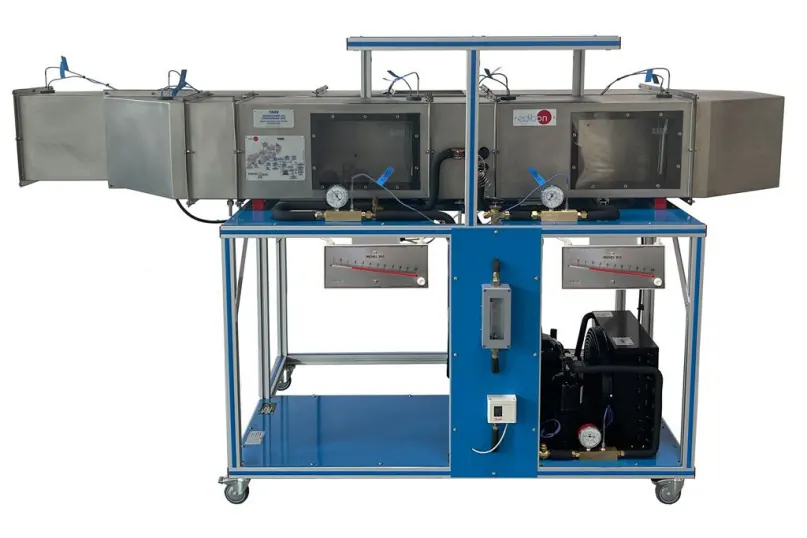

TARB: Recirculating Air Conditioning Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Air conditioning tunnel that can work with fresh air or recycled air, covering heating, cooling, humidification, dehumidification, recirculation and mixing. Instrumentation allows preheating efficiency and the evaporator mass balance to be determined.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Stainless steel testing tunnel with four sight glasses and an axial fan |
| Specification | Preheating element of 2000 W at the evaporation unit inlet |
| Specification | Reheating element of 1000 W at the evaporation unit outlet |
| Specification | Five hygrometers along the tunnel, each with wet and dry bulb temperature sensors |
| Specification | Temperature sensors, pressure meters and flow meters on the refrigeration circuit |
| Specification | Computer controlled version available as TARC |
