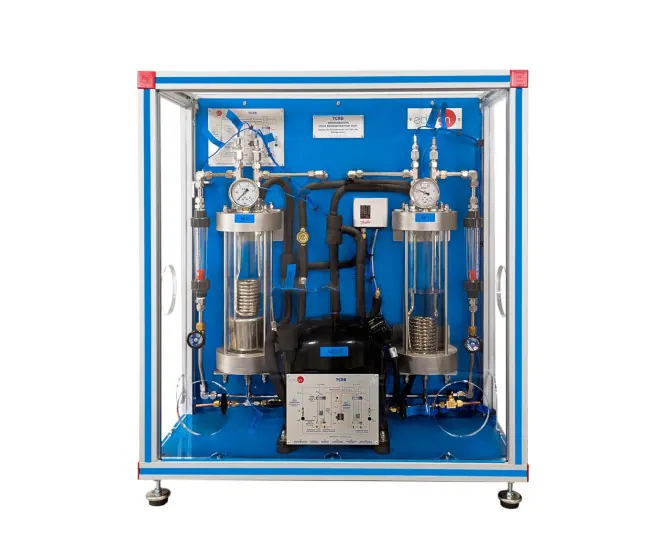

TCRB: Refrigeration Cycle Demonstration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Vapour compression refrigeration and heat pump cycle with the evaporation and condensation processes visible inside glass cylinders. Water flows through nickel plated coils in each vessel, and control valves let students vary the evaporating and condensing pressures.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Uses NE30-Fluid 0z36 refrigerant, non toxic and with low vapour pressure |
| Specification | Glass evaporator and glass condenser, each with a nickel plated copper coil |
| Specification | Hermetic compressor draws vapour from the evaporator |
| Specification | Float valve at the base of the condenser acts as the expansion device |
| Specification | Insulating valve for demonstrating refrigerant pump down during maintenance |
| Specification | High pressure switch and relief valve on the condenser |
