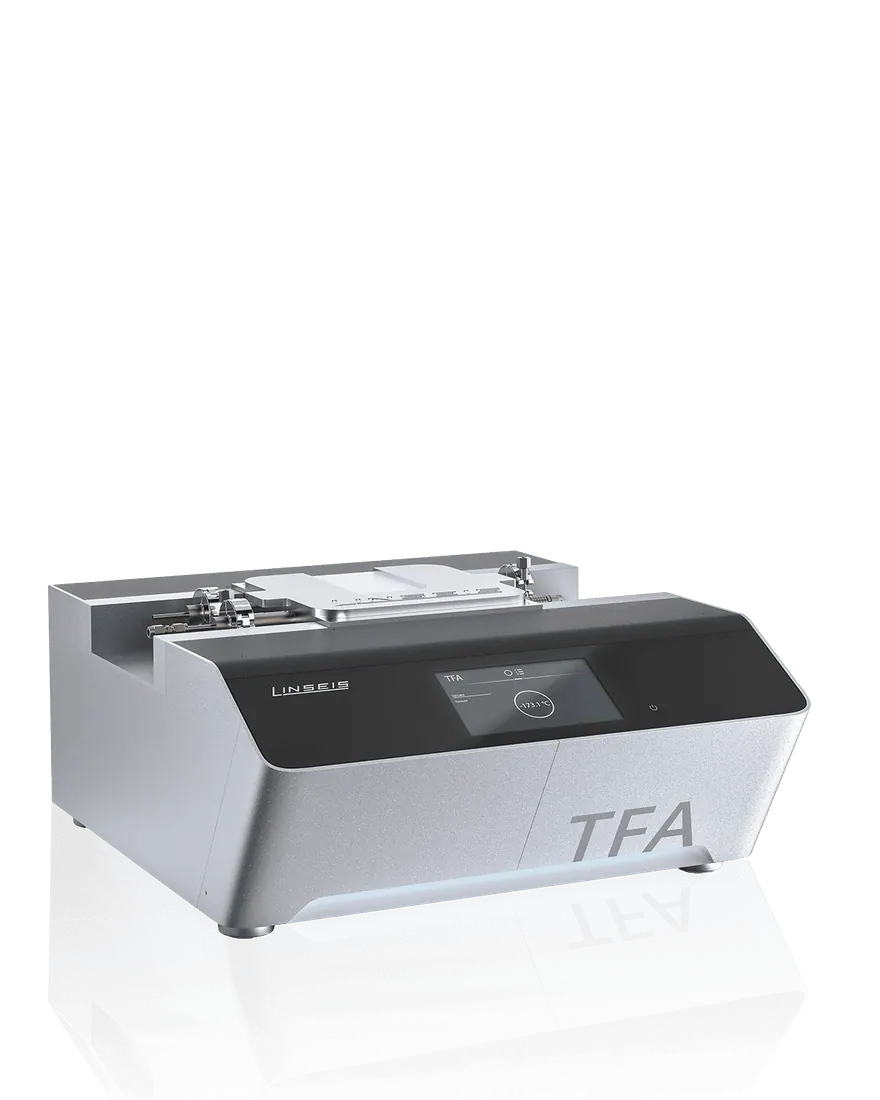

TFA L59
Brand: Linseis | Category: Nanotechnology
The TFA L59 is a thin film analyser for layers in the nanometre to micrometre range. Using pre-structured measuring chips it determines thermal conductivity by the 3 Omega method along with heat capacity, and optionally electrical conductivity and Hall data. It works from -160 C to 280 C.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | RT to 280 C, -160 C to 280 C with LN2 cooling |
| Sample thickness | from 5 nm to 25 um (depending on sample) |
| Measuring principle | chip-based, pre-structured measuring chips, 24 pieces per box |
| Measured parameters | thermal conductivity (3 Omega), heat capacity |
| Optional | electrical conductivity / specific resistance, Hall constant / mobility / charge carrier density (electromagnet up to 1 T or permanent magnet with 0.5 T) |
| Vacuum | about 10E-4 mbar |
