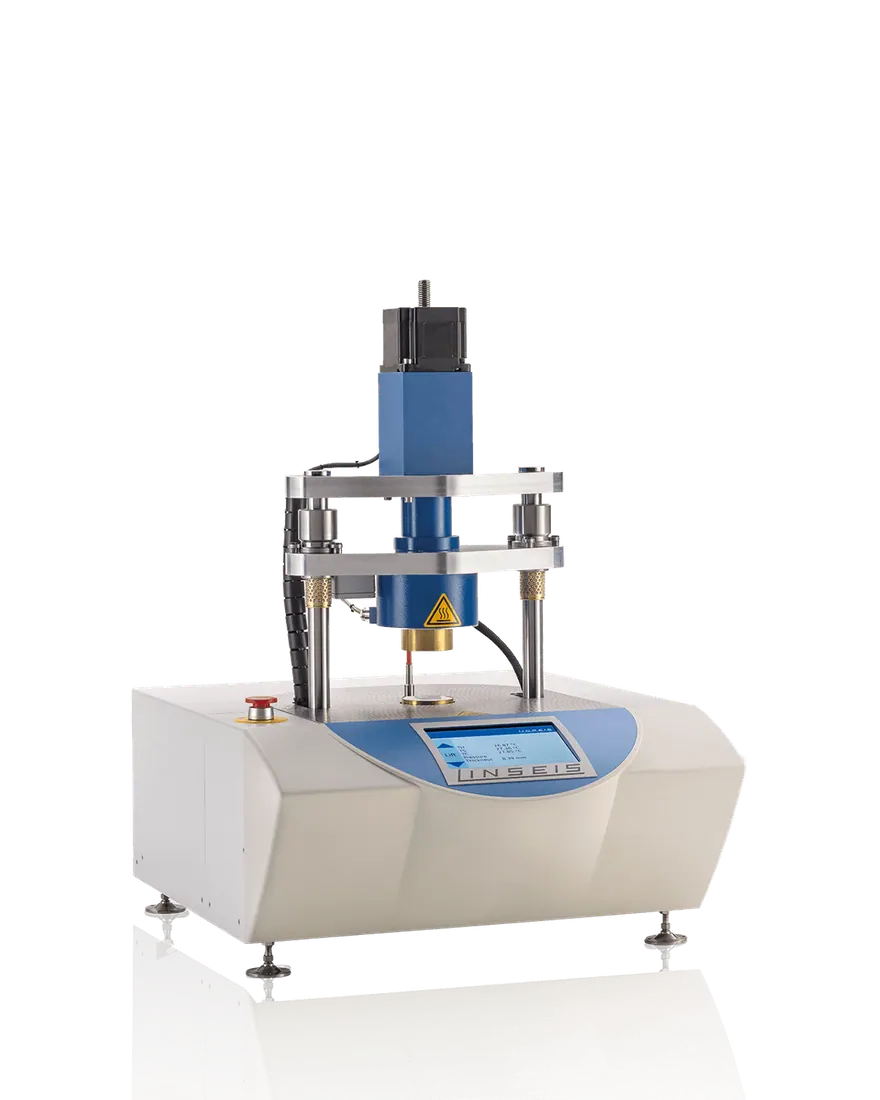

TEG L34
Brand: Linseis | Category: Nanotechnology
The TEG L34, also published as the TEG-Tester, rates the temperature dependent efficiency of thermoelectric generators and Peltier elements. A controlled temperature difference is applied across the module and the resulting voltage and current are recorded. It takes round and rectangular modules up to 25 mm thick.
Technical Specifications
| Parameter | Value |
|---|---|
| Sample size | round diameter 20 mm, 25 mm, 40 mm, 60 mm; rectangular 20 x 20 mm, 25 x 25 mm, 40 x 40 mm |
| Sample thickness | up to 25 mm |
| Temperature range | RT up to 300 C (on the hot side) / -20 C up to 300 C |
| Temperature accuracy | 0.1 C |
| Voltage range | 0 to 12 V (DC), resolution 1.6 uV, accuracy 0.3 % |
| Amperage | 0 to 3 A (DC) |
