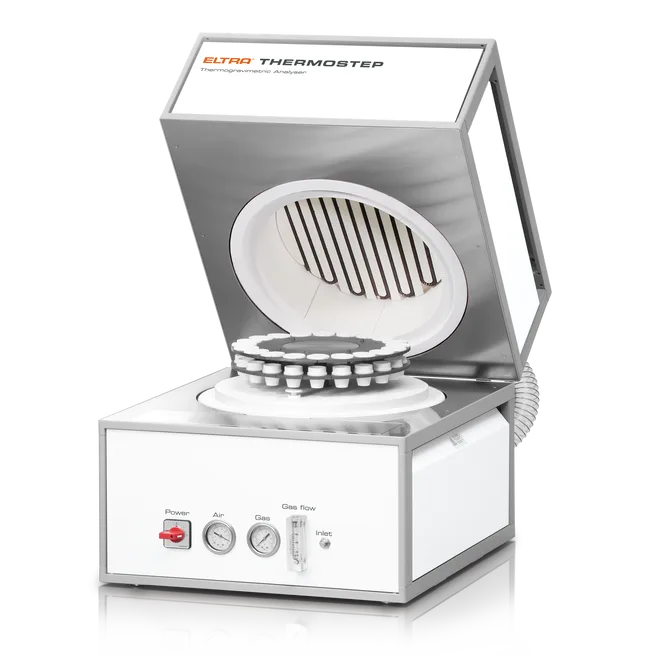

TGA THERMOSTEP: Thermogravimetric Analyser
Brand: Eltra | Category: Scientific & Laboratory Equipment
Macro thermogravimetric analyser that determines moisture, volatile matter, ash and loss on ignition in a single programmed run by weighing samples continuously as the furnace steps through temperature stages. Up to 19 samples are carried on a carousel, which suits coal, coke, biomass and mineral laboratories running proximate analysis.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. number of samples | 19 crucibles + 1 reference crucible |
| Balance resolution | 0.0001 g |
| Power requirements | 230 V, 50/60 Hz, max. 32 A |
| Dimensions (W x H x D) | 55 x 52 x 62 cm |
| Weight | ~ 65 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Eltra equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
