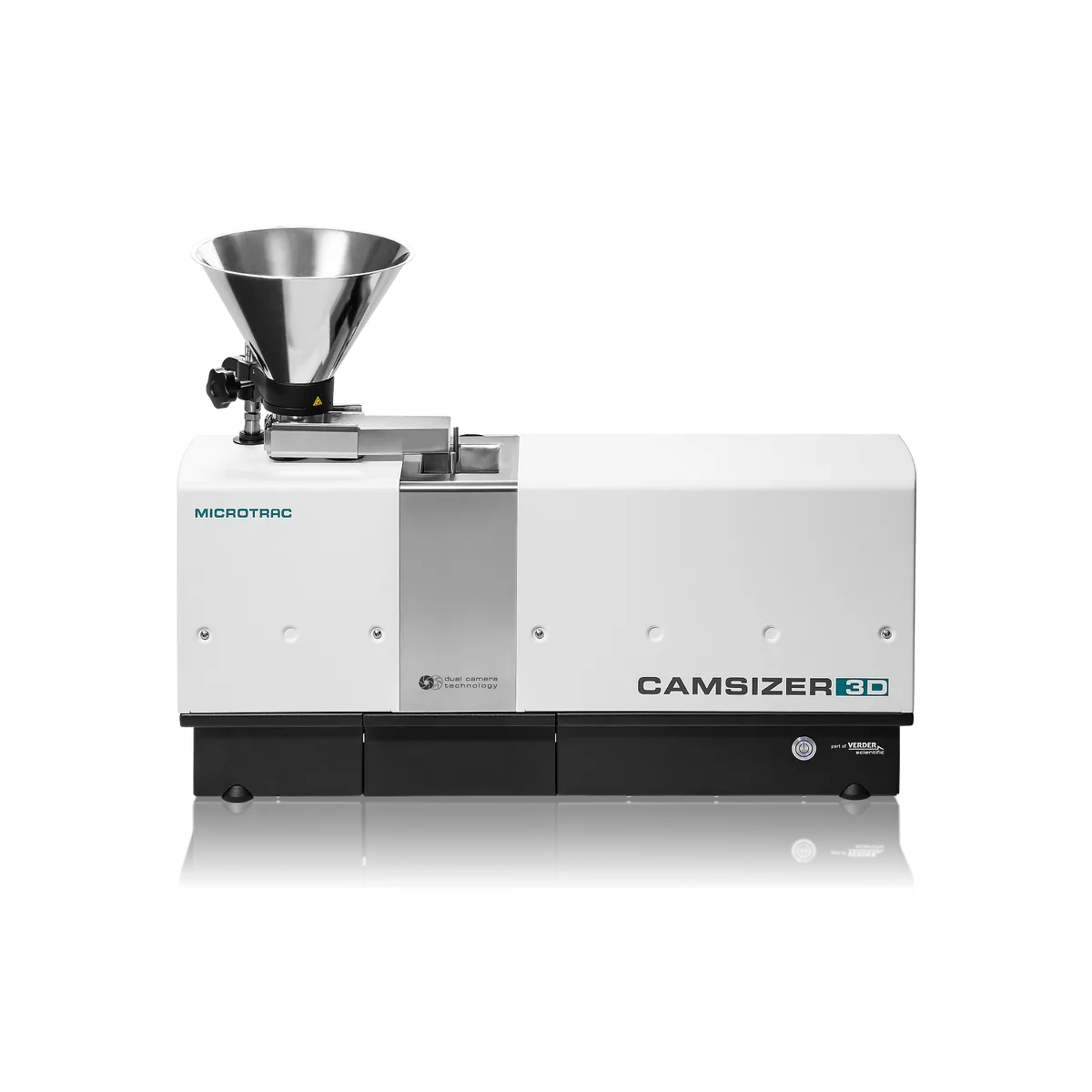

CAMSIZER 3D: Particle Size and Shape Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Dynamic image analyser that photographs particles in free fall with two cameras and derives size, shape, volume, density, transparency and count from the images. Working to ISO 13322-2, it covers a recommended range from 20 µm to 30 mm with no hardware change, which suits granules, tablets, aggregates and abrasives.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measurement principle | 2D and 3D dynamic image analysis |
| Recommended measuring range | 20 µm–30 mm, without hardware adjustment |
| Cameras | Dual camera, 9 MP and 5 MP |
| Image rate | Up to 250 images/s |
| Typical measurement time | Approximately 2–5 minutes, depending on required statistics |
| Dimensions | 850 × 650 × 350 mm (W × H × D) |
| Weight | Approximately 40 kg |
Selected CAMSIZER 3D instrument data. The separate automated sample-feeding system has different size, weight and compressed-air requirements and is not included in these instrument dimensions. Checked 2026-09-29.
