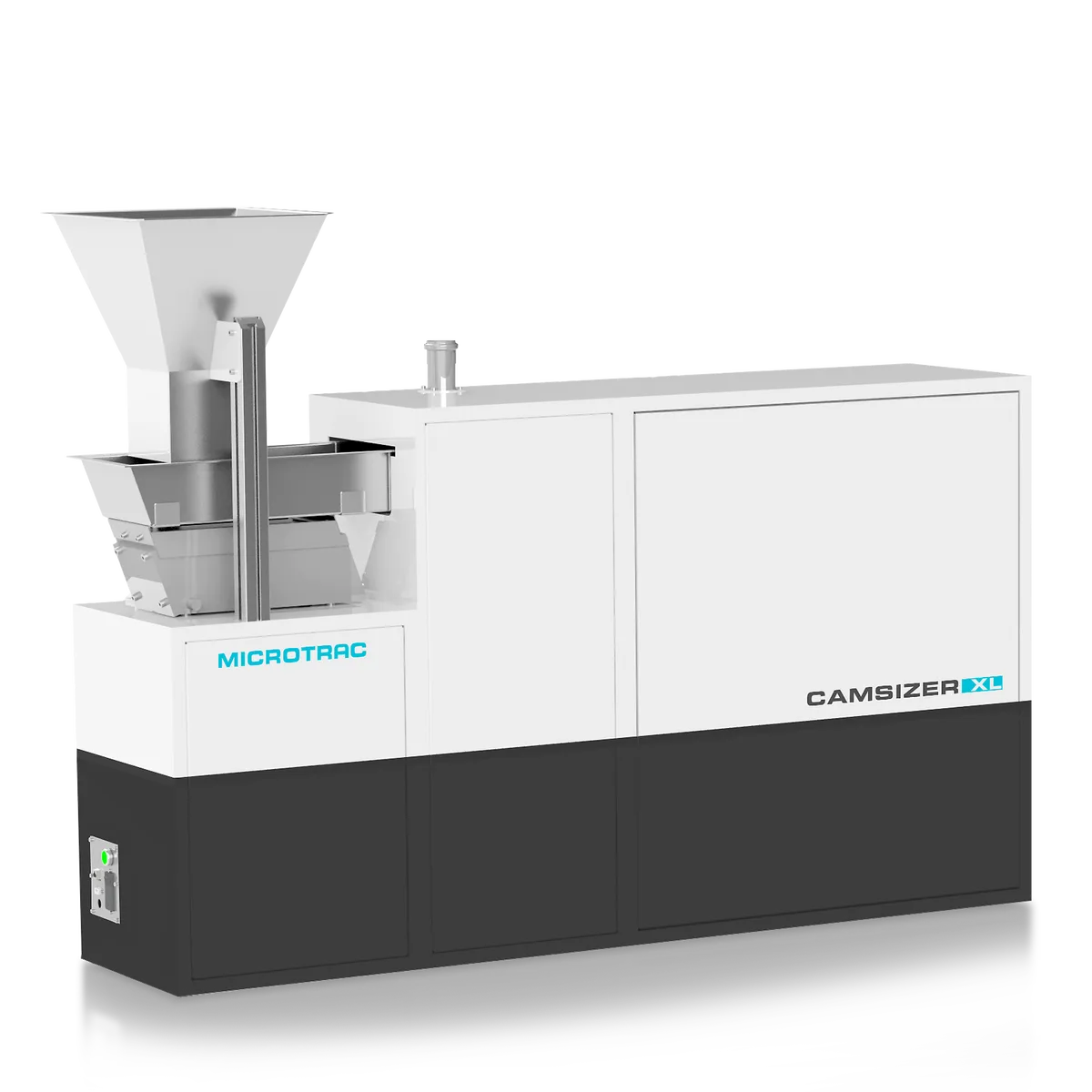

CAMSIZER XL: Particle Size and Shape Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Large particle image analyser covering 160 µm to 135 mm, so it reaches into the size range normally handled by sieving. That makes it directly relevant to aggregate, fertiliser and mineral grading, where it produces size and shape data from a sample of a few kilogrammes in minutes.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring principle | Dynamic Image Analysis (ISO 13322-2 & 9276-6) |
| Measuring range | 160 µm - 135 mm |
| Measurement parameters | The patented 3D measurement follows the ISO 13322-2 |
| Measurement rate | > 100 images/s |
| Power consumption | Approx. 100 Watt |
| Sample amount | > 2kg (depending on application) |
| Measuring time | ~ 1 - 5 minutes (depending on application) |
| Dimensions (W x H x D) | 400 x 1229 x 1693 mm |
| Weight | ~ 70 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
