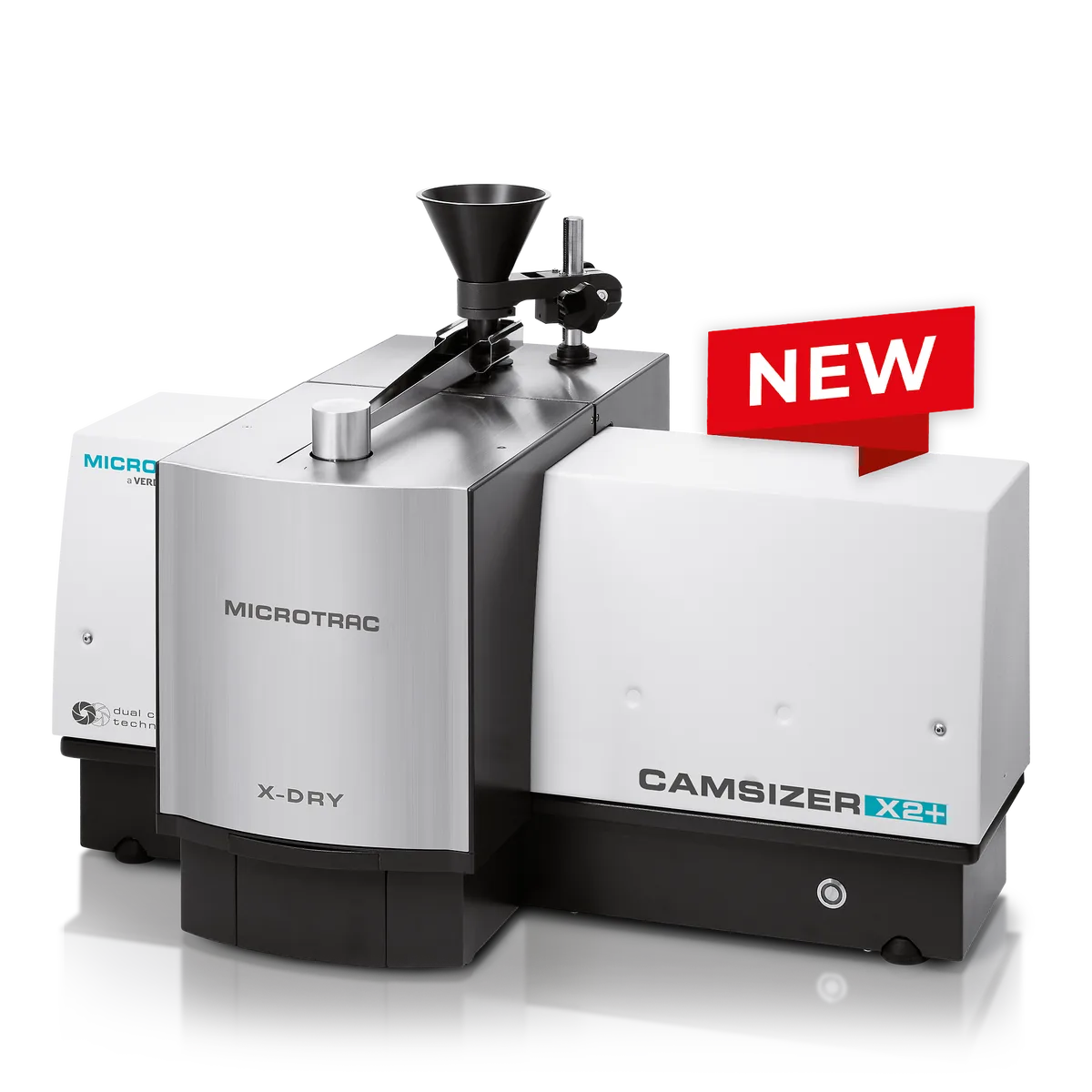

CAMSIZER X2+: Particle Size and Shape Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Dynamic image analyser for fine powders, covering 0.9 µm to 8 mm with a digital resolution of 0.9 µm per pixel. Three dispersion options are built in, air pressure, gravity and wet, so cohesive powders and suspensions can both be measured on the same instrument. Shape parameters follow ISO 9276-6.
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring principle | Dynamic Image Analysis (ISO 13322-2) |
| Measuring range | 0.9 µm to 8 mm 0.9 µm to 8 mm (air pressure dispersion) 10 µm to 8 mm (gravity dispersion) 0.9 µm to 1 mm (wet dispersion) |
| Type of analysis | Dry and wet analysis |
| Measurement time | ~ 1 to 3 min (depends on desired measuring statistics, including analysis and data processing) |
| Number of cameras | 2 (Dual Camera Technology) |
| Sample volume | 20 mg - 500 g (depends on sample type and measurement mode) |
| Camera performance | > 420 image/s, each with > 5.0 MPixel |
| Width of analysis area | ~ 350 mm² |
| Digital Resolution | 0.9 µm per pixel |
| Measurement parameters | particle size (smallest diameter, length, mean diameter, etc.) particle shape (aspect ratio width to length, symmetry, sphericity, convexity etc., acc. to ISO 9276-6) |
| Dimensions (W x H x D) | 850 x 580 x 570 mm |
| Weight (Measuring unit) | ~ 50 kg |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
