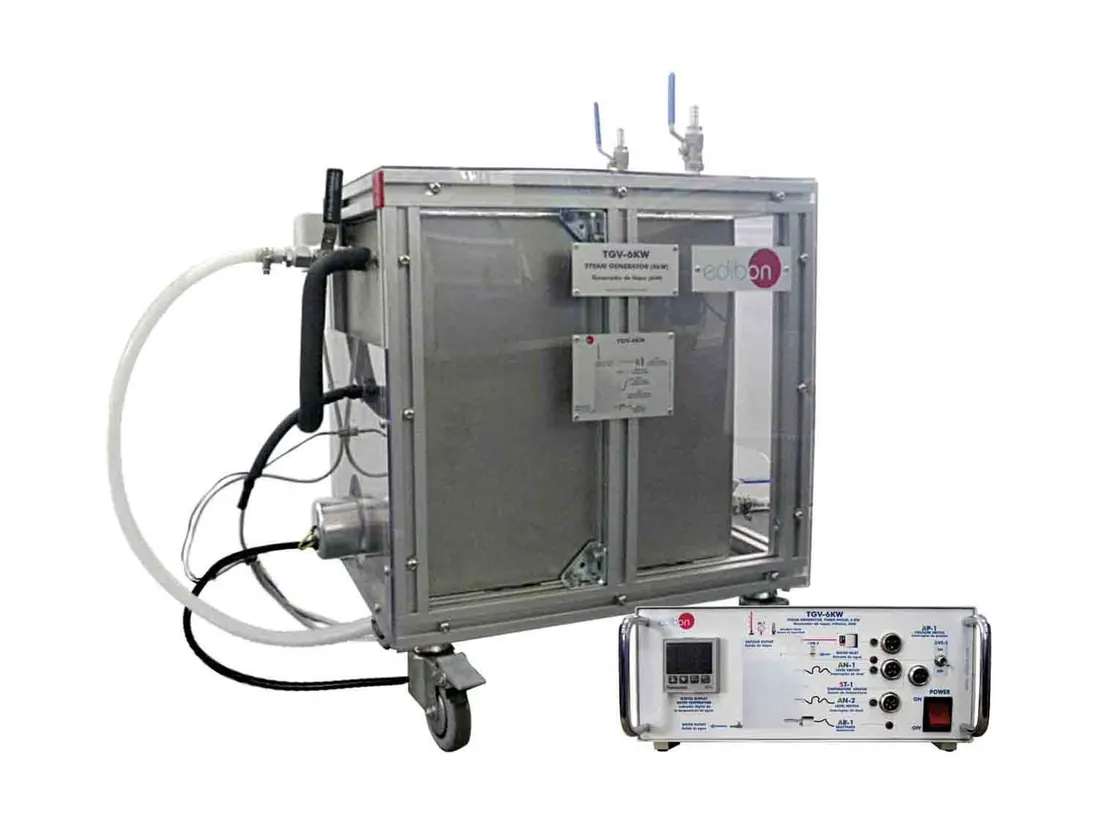

TGV/6KW: Steam Generator (6 kW)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
The 6 kW version of the EDIBON electrically heated steam generator. It produces saturated steam at 0.9 bar working pressure with a maximum of 2 bar, and includes a safety valve, level indicator, pressure switch and level safety cut out.
Technical Specifications
| Parameter | Value |
|---|---|
| Electric heating element | 6 kW |
| Specification | Carbon steel water tank, volume 40 l, with one water inlet, one water outlet and two vapour outlets |
| Pressure working range | 0 to 0.9 bar |
| Specification | Temperature PID control, maximum set point 120 degrees C, type J temperature sensor |
| Specification | Safety pressure switch at 2 bar and safety level switch |
| Specification | Polycarbonate heat resisting protection screens |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
