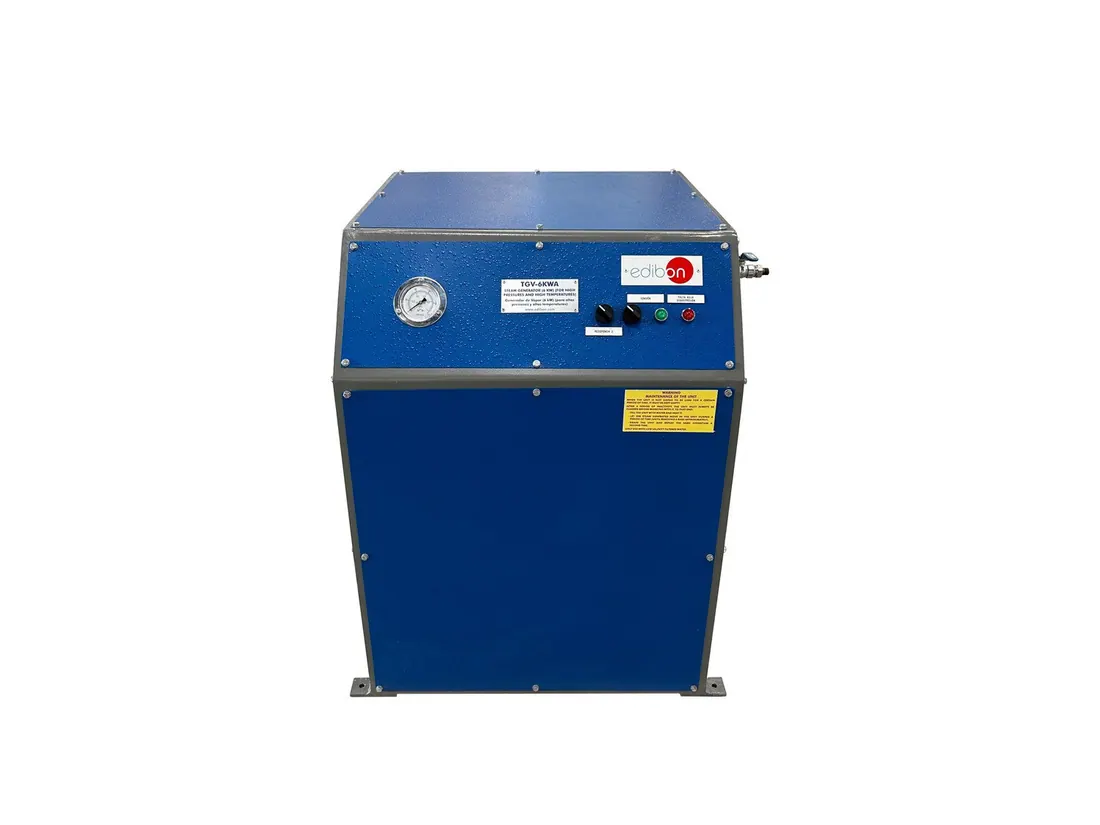

TGV-6KWA: Steam Generator (6 kW) (for high pressures and high temperatures)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A horizontal steam generator with two 6 kW heating elements for higher pressure work. It produces steam at 5 bar service pressure with a maximum of 6 bar, and the boiler body is insulated with mineral wool.
Technical Specifications
| Parameter | Value |
|---|---|
| Electric heating element | 6 kW |
| Vapour generation | 10 to 12 kg of steam per hour |
| Specification | Carbon steel water tank, volume 70 l, boiler body insulated with mineral wool |
| Pressure gauge range | 0 to 6 bar |
| Specification | Safety pressure switch at 6 bar and safety valve at 6 bar |
| Specification | Two safety level switches, one for minimum and one for maximum level |
