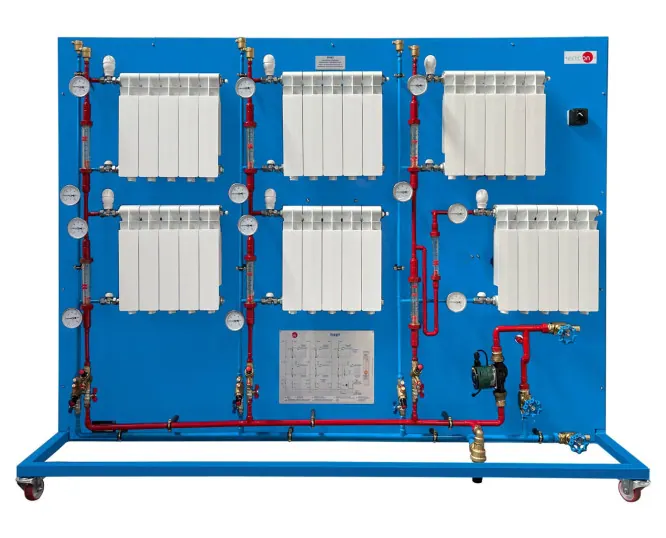

THBT: Hydraulic Radiator Balancing Training Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Unit for studying how to balance a heating installation so that every radiator receives enough hot water. Balancing valves, thermostatic valves and lockshields are set on independent circuits built from commercial components.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Several heating circuits, each able to be closed independently |
| Specification | Balancing valves regulate the passage of heat transfer fluid to each radiator |
| Specification | Each radiator has a thermostatic valve with thermostatic head, air vent and adjustable lockshield |
| Specification | Differential pressure overflow valve and automatic drains |
| Specification | Circulation pump drives the circuits |
| Specification | Circuits made with commercial components and can run independently of the mains supply |
